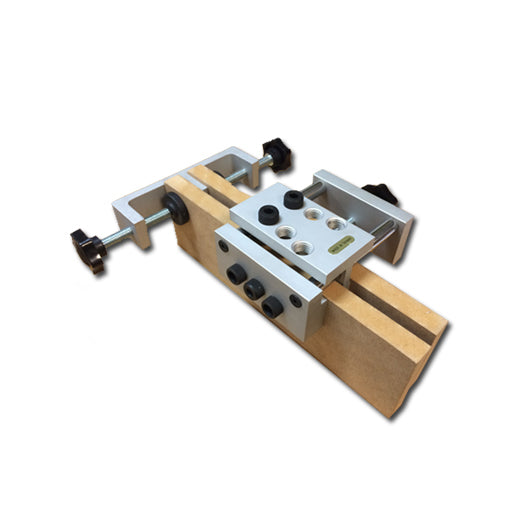

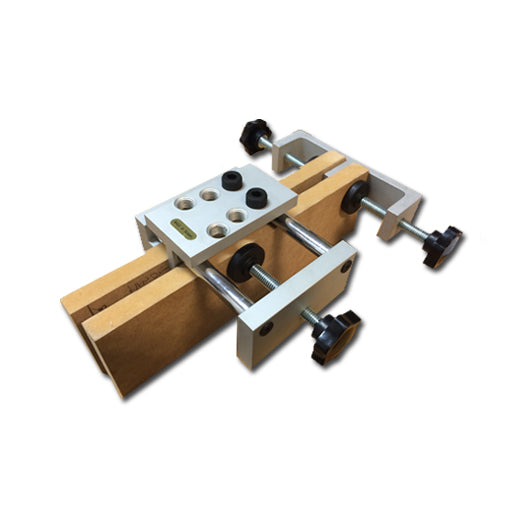

2 in 1 Dowelling Jig Kit DV21 by Oltre

2 in 1 Dowelling Jig Kit DV21, Manufactured in Taiwan

How to use?:-

• Select the desired drill size, locking the two workpiece with the E clamp and put the jig into position.
• Drill Hole on each workpiece as desired, then release the knob and slide the jig to the next position.
• Repeat the process along the length of the board without releasing the E Clamp.

The 2 in 1 Kit achieves easy, precise and perfect Dowel Joints. Jig is manufactured from Aluminium with Hardened Steel Screws.

• Suitable for 3 x standard board size (thicknesses).
• Kit includes 9 steel imperial bushings
  • Drill Hole Sizes are (imperial):-
    • 1/4" (6.35mm) - centres on 16mm Board
    • 5/16" (7.9mm) - centres on 19mm Board
    • 3/8" (9.5mm) - centres on 25mm Board
• Maximum Board / Stock Thickness suitable with jig: 32mm
