Please contact us for other assembly options available throughout Australasia
Additional Information
Model
Type
Panel Saw
SKU
9504836
Part Number
OT-PS-1216A
Brand
Oltre
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
4HP / 3000W
Cutting Capacity - Height
80 mm
Technical - Saw

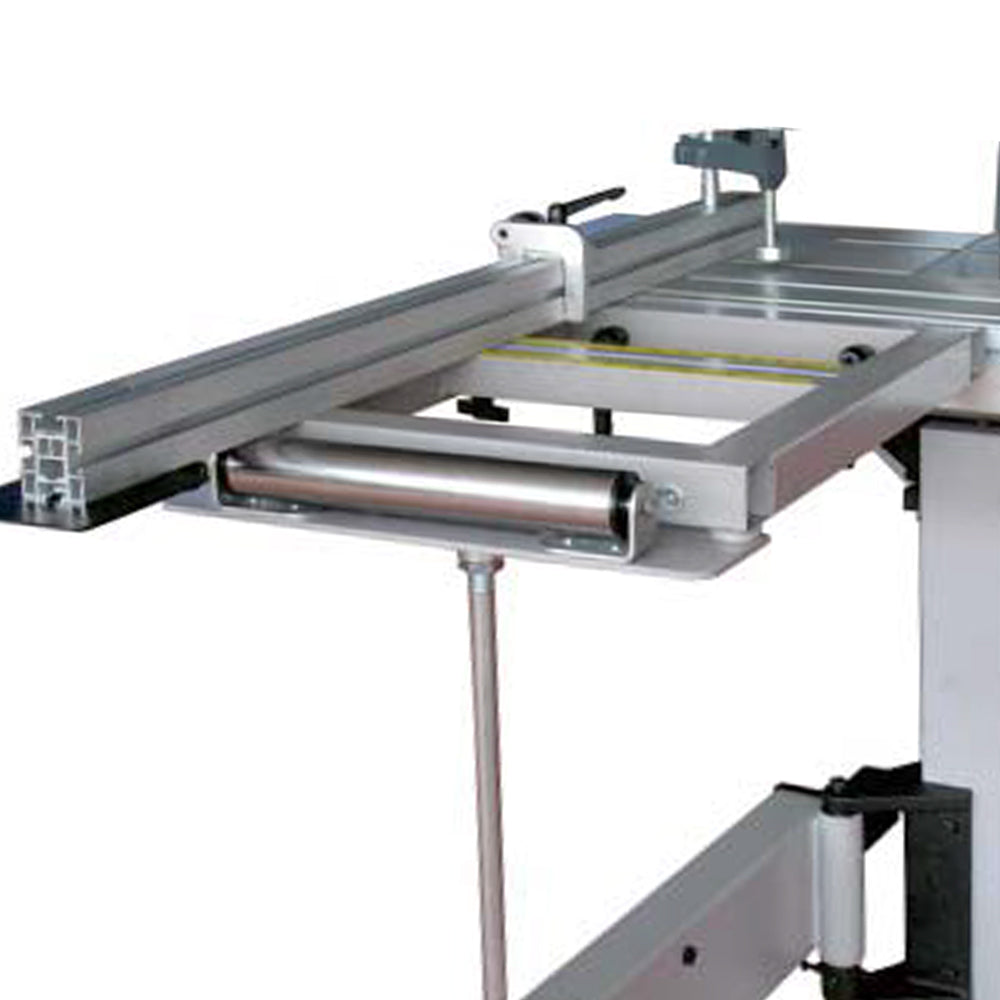

Sliding Table (Cross Cut) Size
1600mm
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
315 mm
Blade (Main) - Speed
4000RPM
Blade (Scoring) - Diameter (Max.)
90 mm
Blade (Scoring) - Bore Size
20 mm
Blade (Scoring) - Speed
7500RPM
Blade Tilt
90° to 45°
Workshop (Site) Info
Electrical Connection
Lead & Plug
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Packaging + Shipping
Shipping Length
910 mm
Shipping Width
741 mm
Shipping Height
1047 mm
Shipping Weight (Gross)
350.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
Optional Accessories
315mm (12") 4HP 1.6m Sliding Table Panel Saw 240V OT-PS-1216A by Oltre
