Type
Planer / Thicknesser
SKU
8601510
Part Number
OT-PT-1601A
Brand
Oltre
Size
410mm (16")
Status
Available
Description
Premium economy machine ideal for home workshops and education environments and small workshops. Oltre means ‘Beyond’ in Italian and this machine is certainly beyond expectations.
Features:

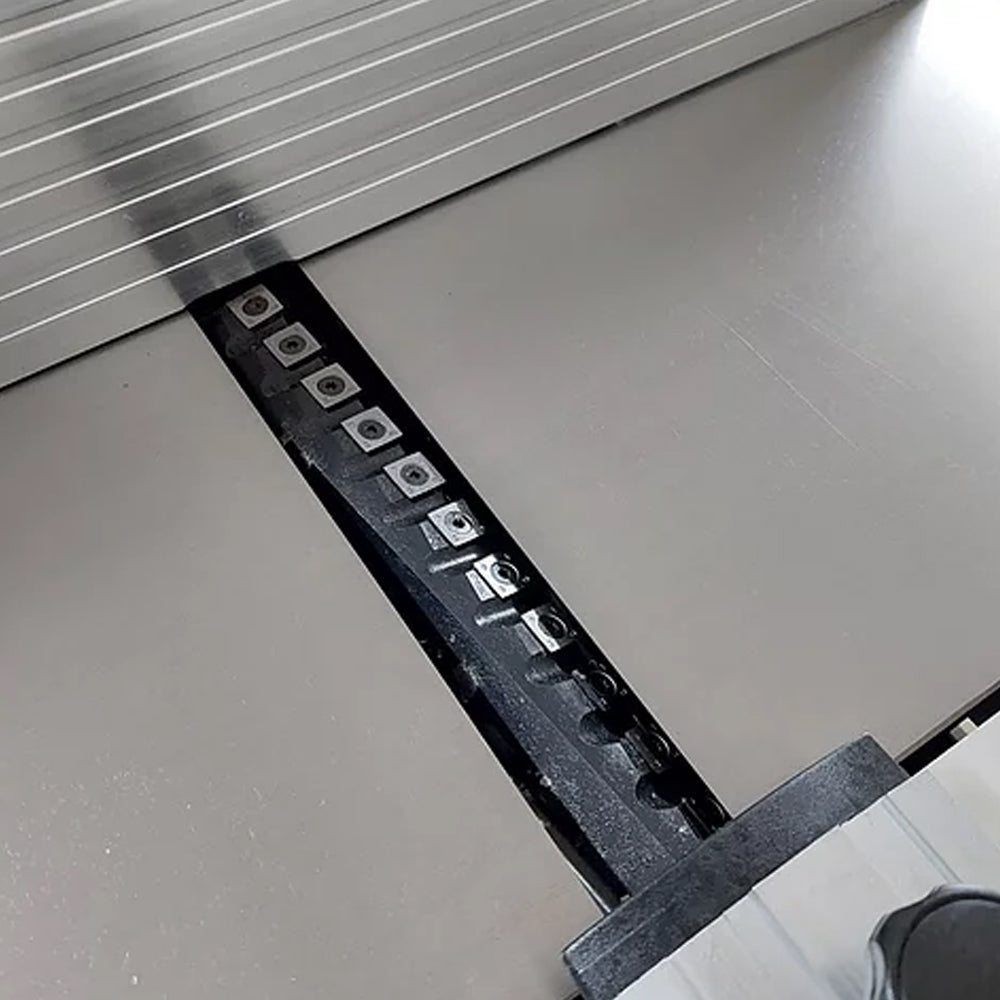

- Spiral Head Cutter Block for Premium performance with a quieter cut
Additional Information
Model
Technical
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
5.5HP / 4000W
Blade - Cutter Head Block - Diameter
70 mm
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Rows
3
Blade - Cutter Head Block Speed
5500
Cutting Capacity - Depth
3mm (planing)
Cutting Capacity - Height
225 mm
Dust Port
100mm
Feed Speed
7m / Min.
No. of Blades / Tips
72
Planer Working Table Size
1300 x 310mm
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
415V 50Hz Three Phase
Dimensions
Product Weight (Net Weight)
260 kg
Country of Origin
Manufactured in
China
Safety
CE Certified
Workshop (Site) Info / Requirements
Electrical Connection
15Amp Plug & Lead
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
2 Years (Home User) or 1 Year (Commercial User)
Packaging + Shipping
Shipping Length
1670 mm
Shipping Width
690 mm
Shipping Height
980 mm
Shipping Weight (Gross)
300.0 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Requires a Skid to Ship
Requires a Skid to Ship
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 50kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end).
Optional Accessories
410MM 16" 415V Planer / Thicknesser with Spiral Head Cutter Block OT-PT-1601A
