Status
Available
Description

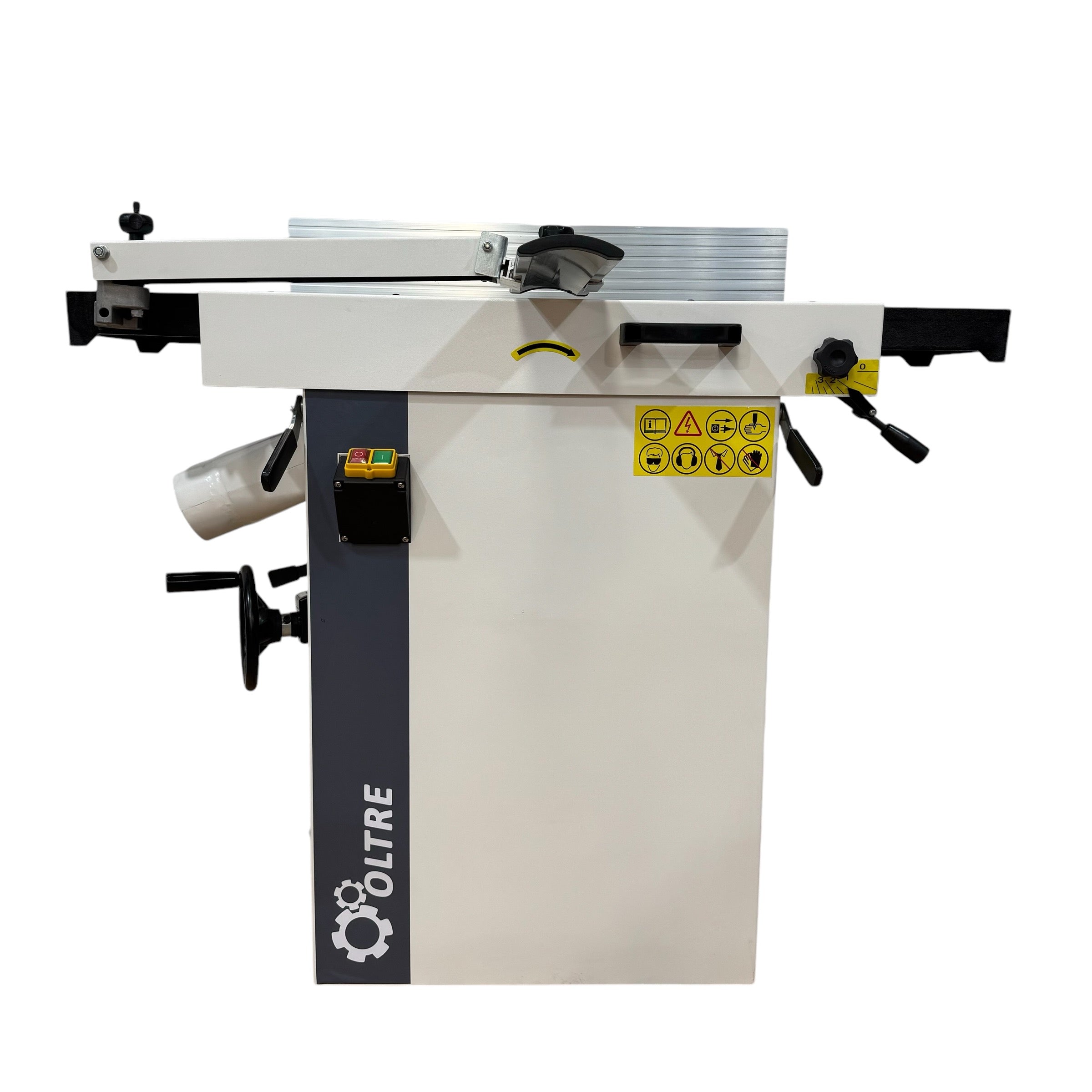

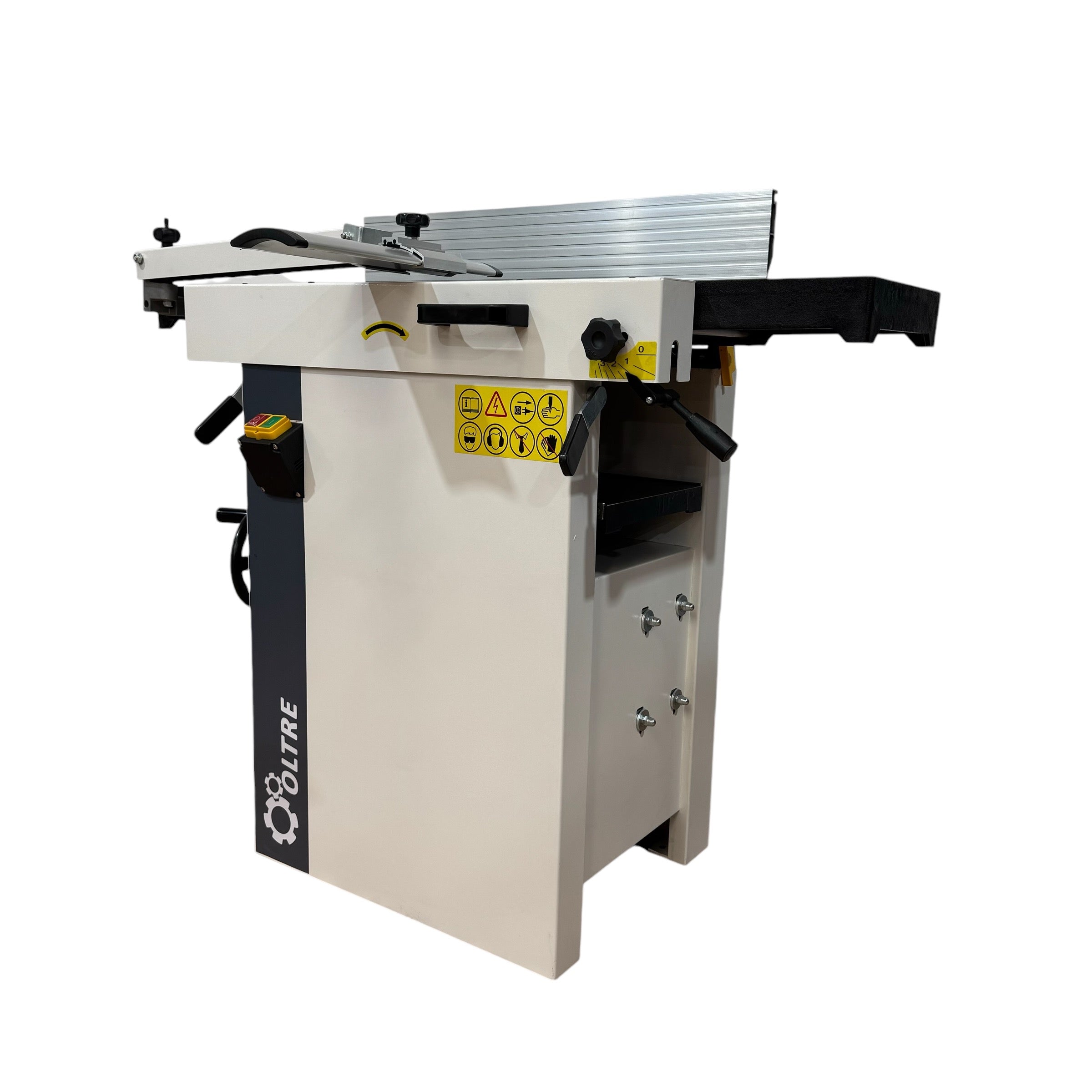

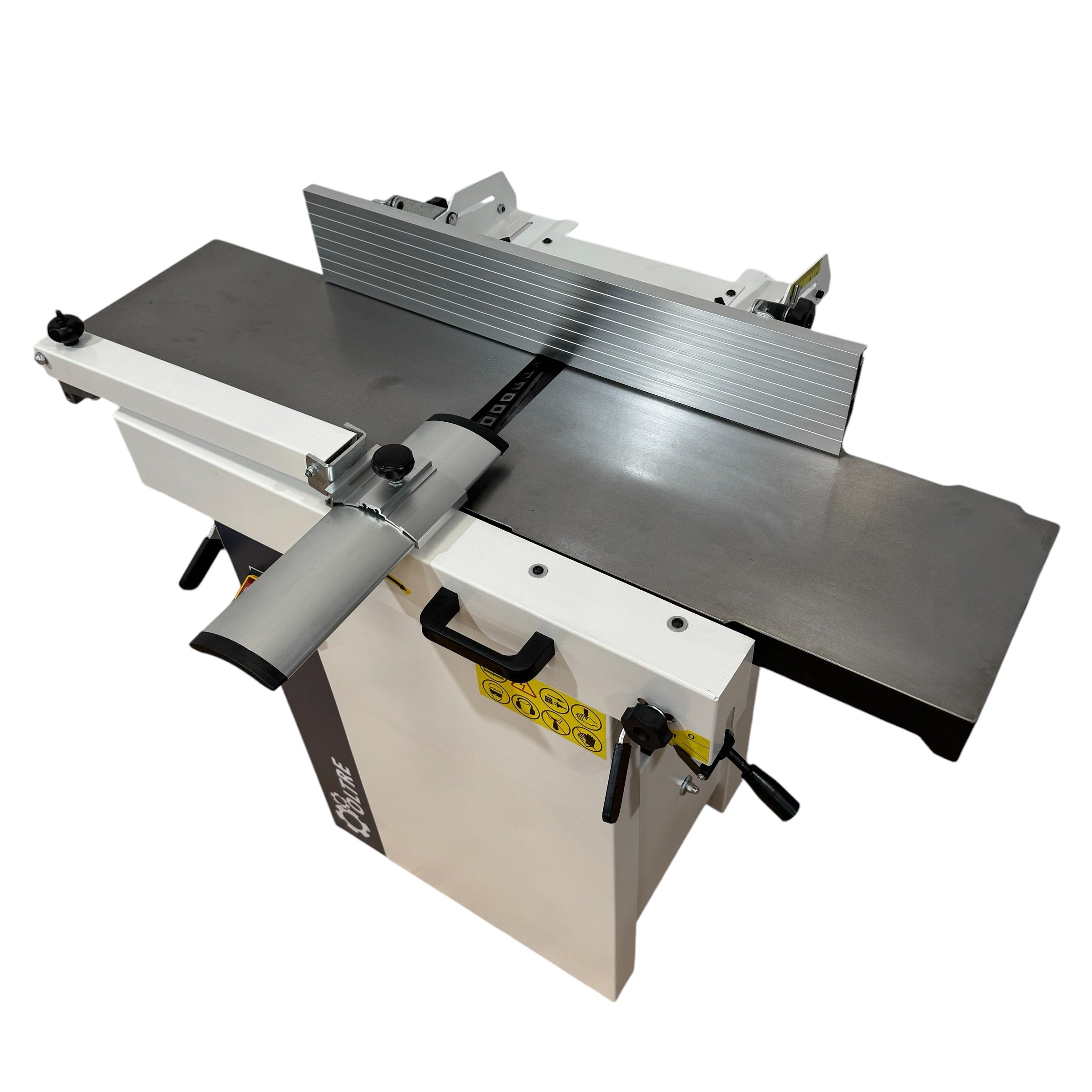

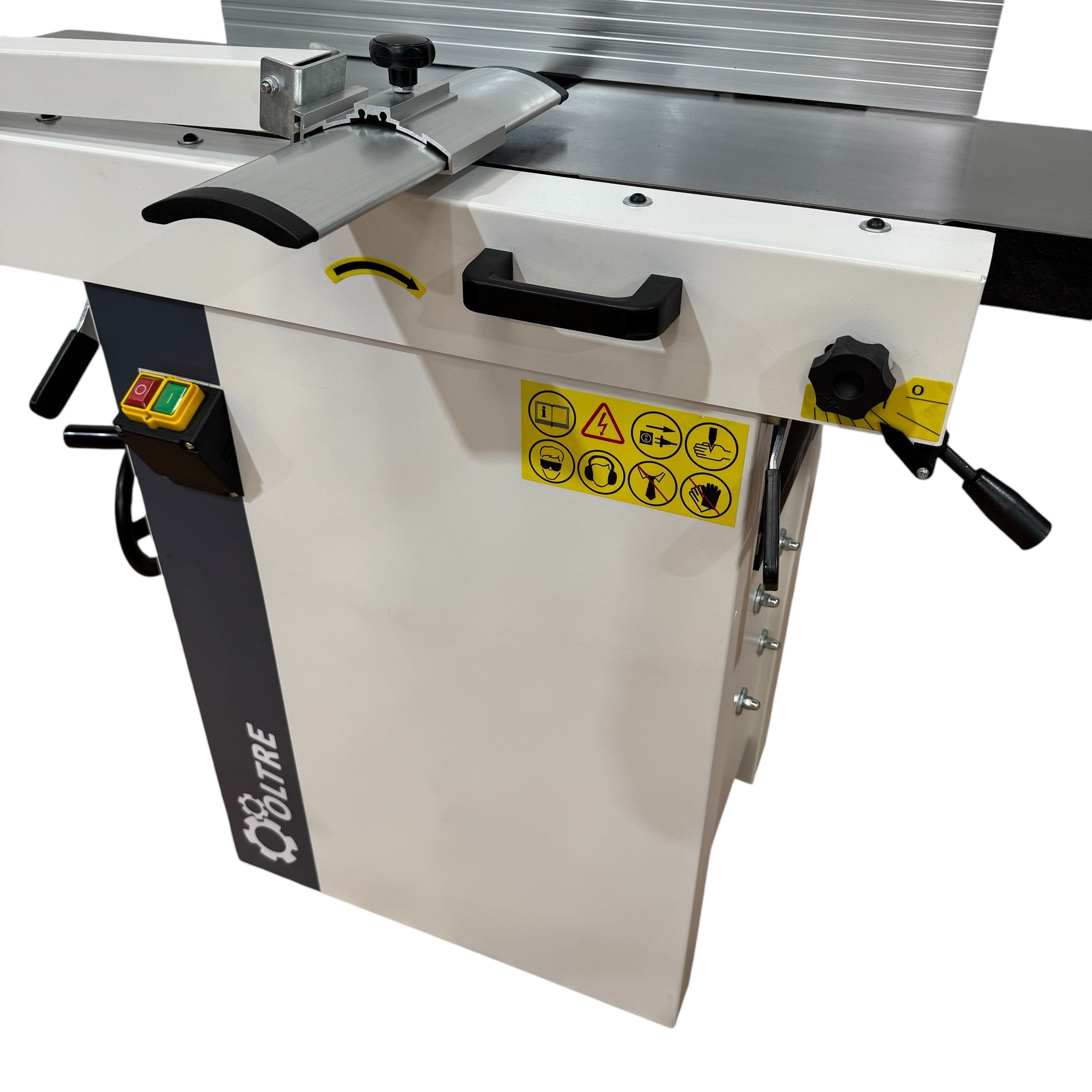

The Oltre Jointer Thicknesser is a high-quality, precision machine designed for home workshops, education, and small businesses. Built with heavy-duty cast iron tables and a powerful 3HP 15Amp 240V motor, it delivers exceptional performance for milling rough-sawn timber into perfectly squared boards.
Key Features
-

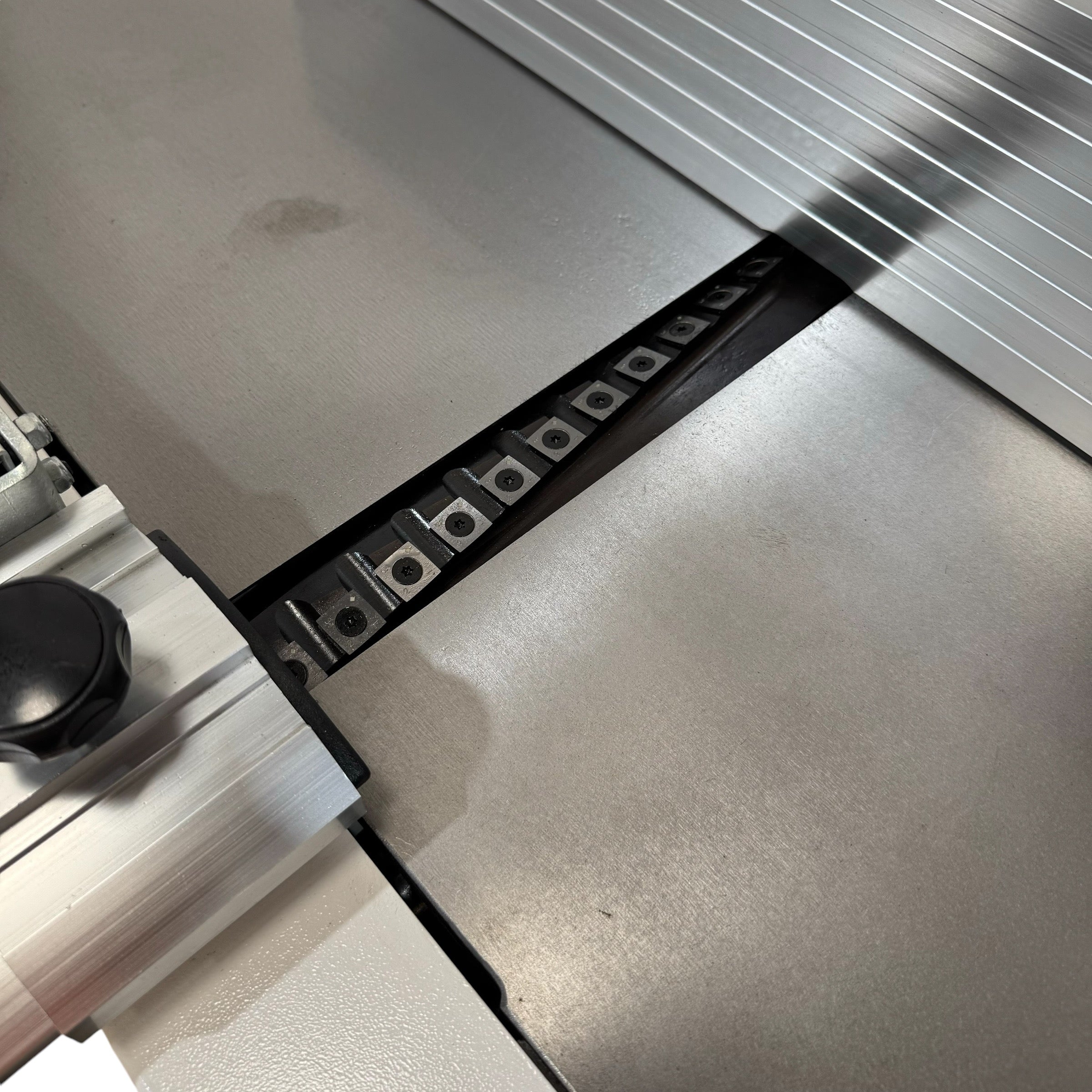

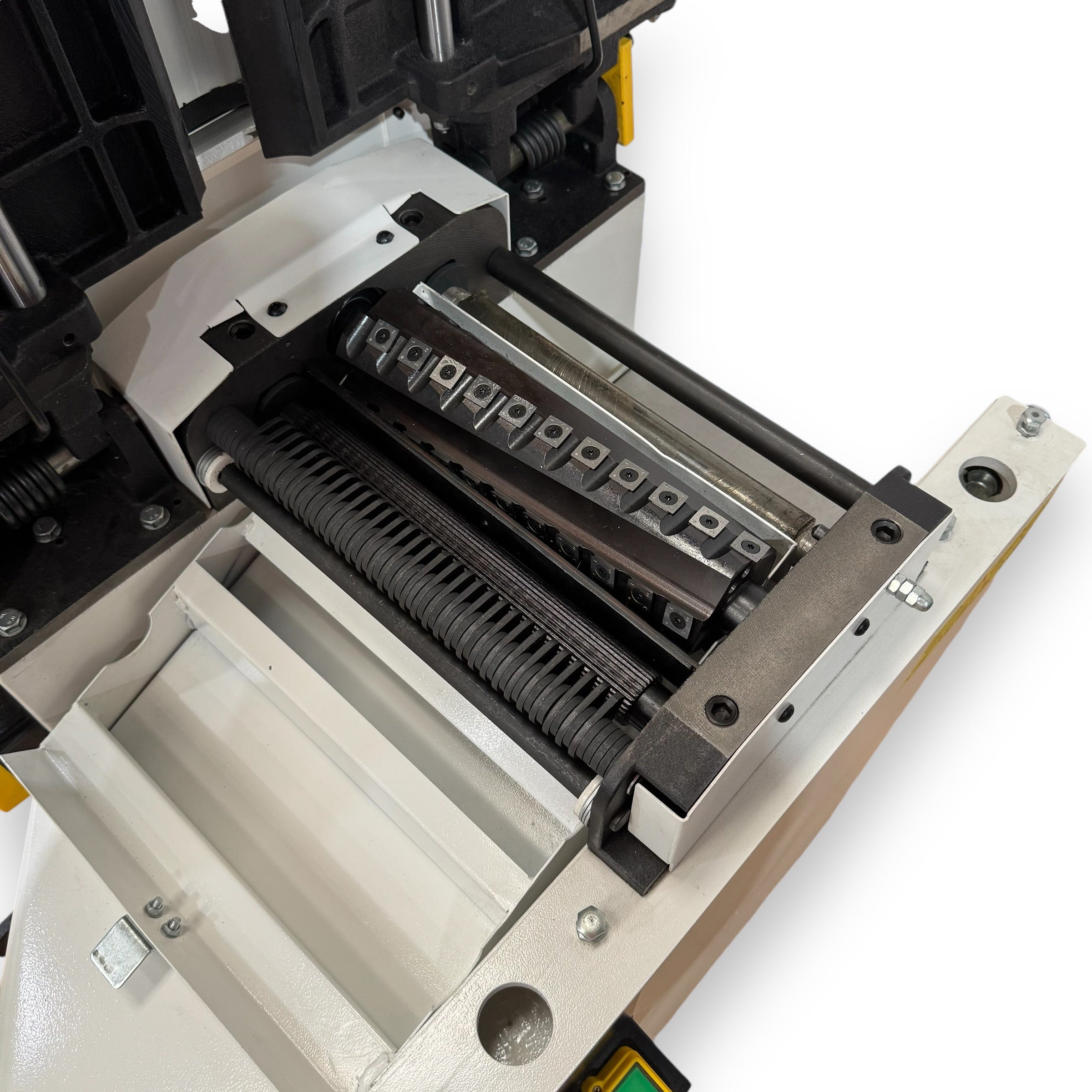

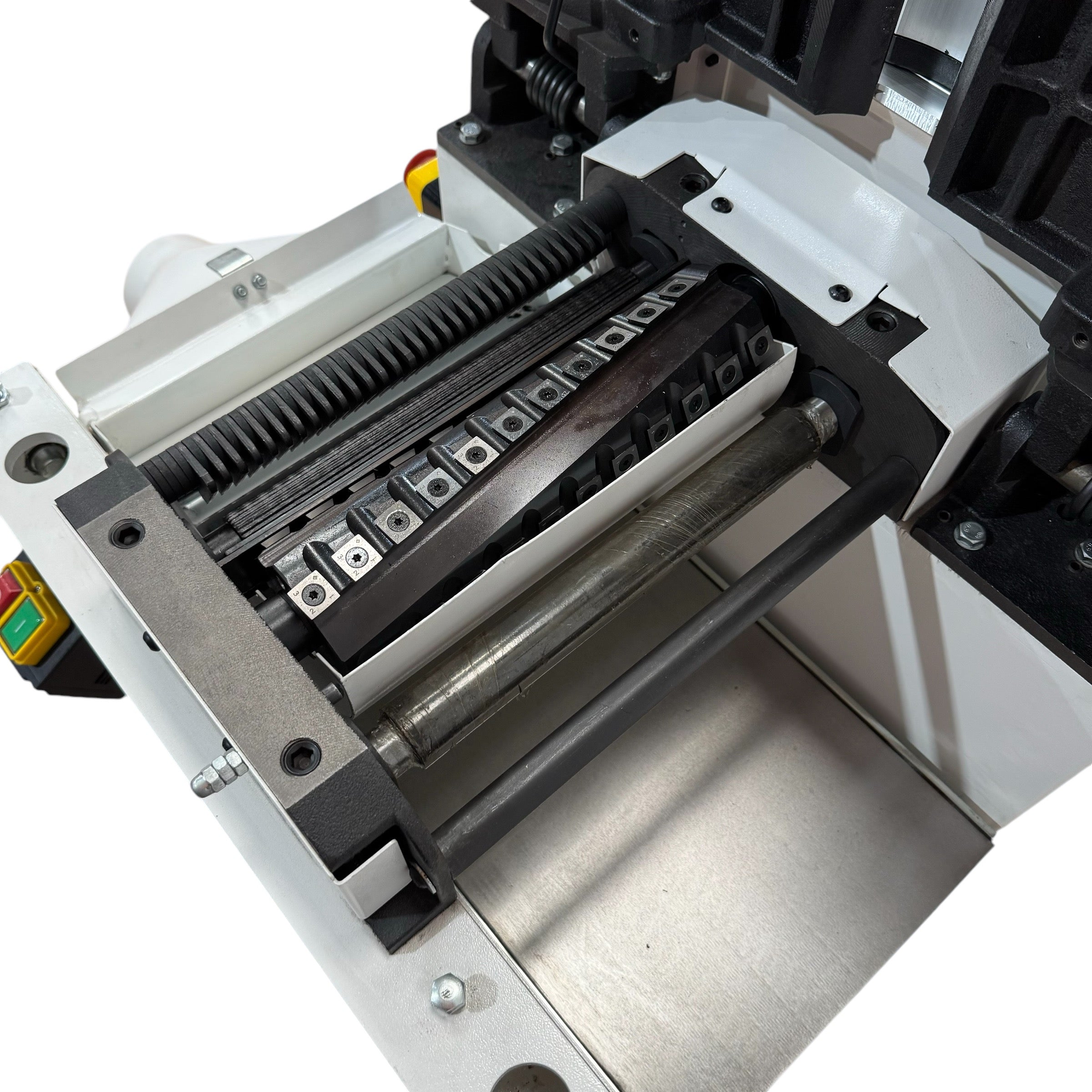

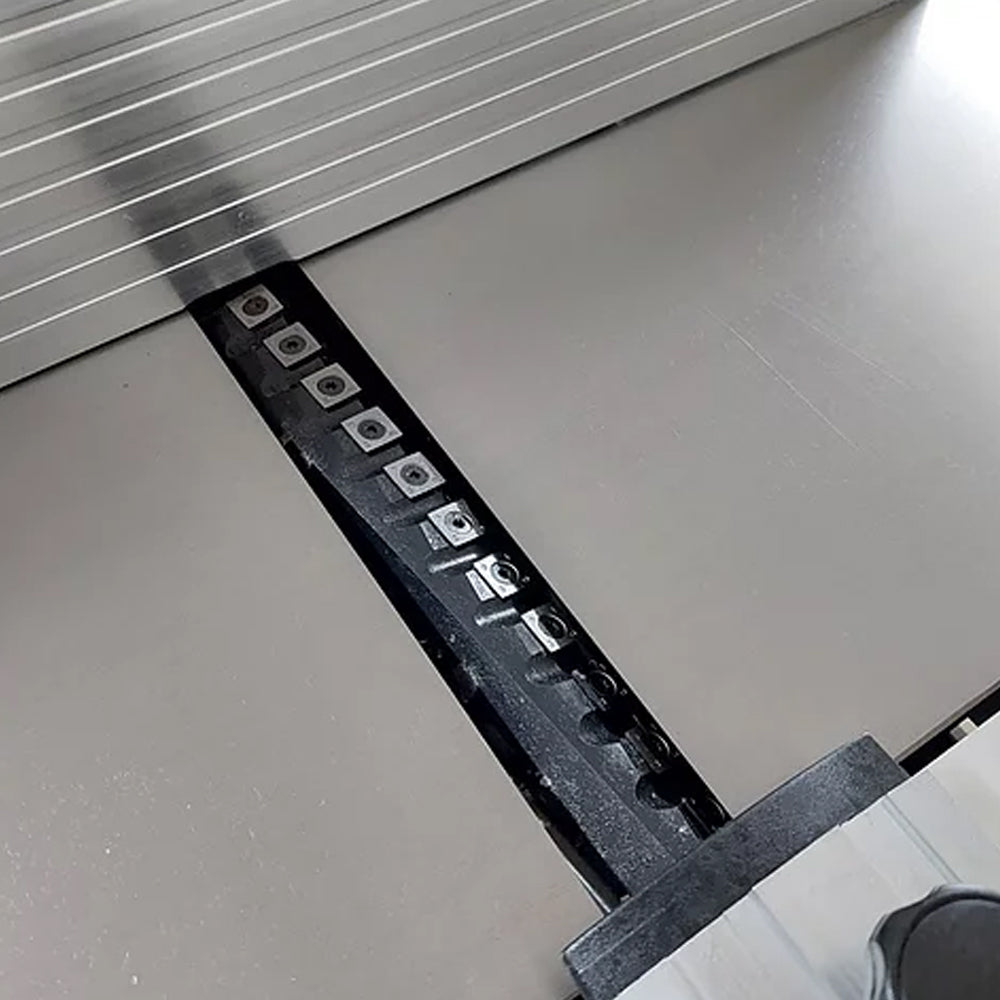

Helical Cutter Head – 44 carbide insert knives (15mm x 15mm x 2.5mm x R1.5) for a smooth, tear-out-free finish, even on Australian hardwoods.
-
Large Work Surfaces
- Jointer: 260mm max width, 1090mm table length.
-

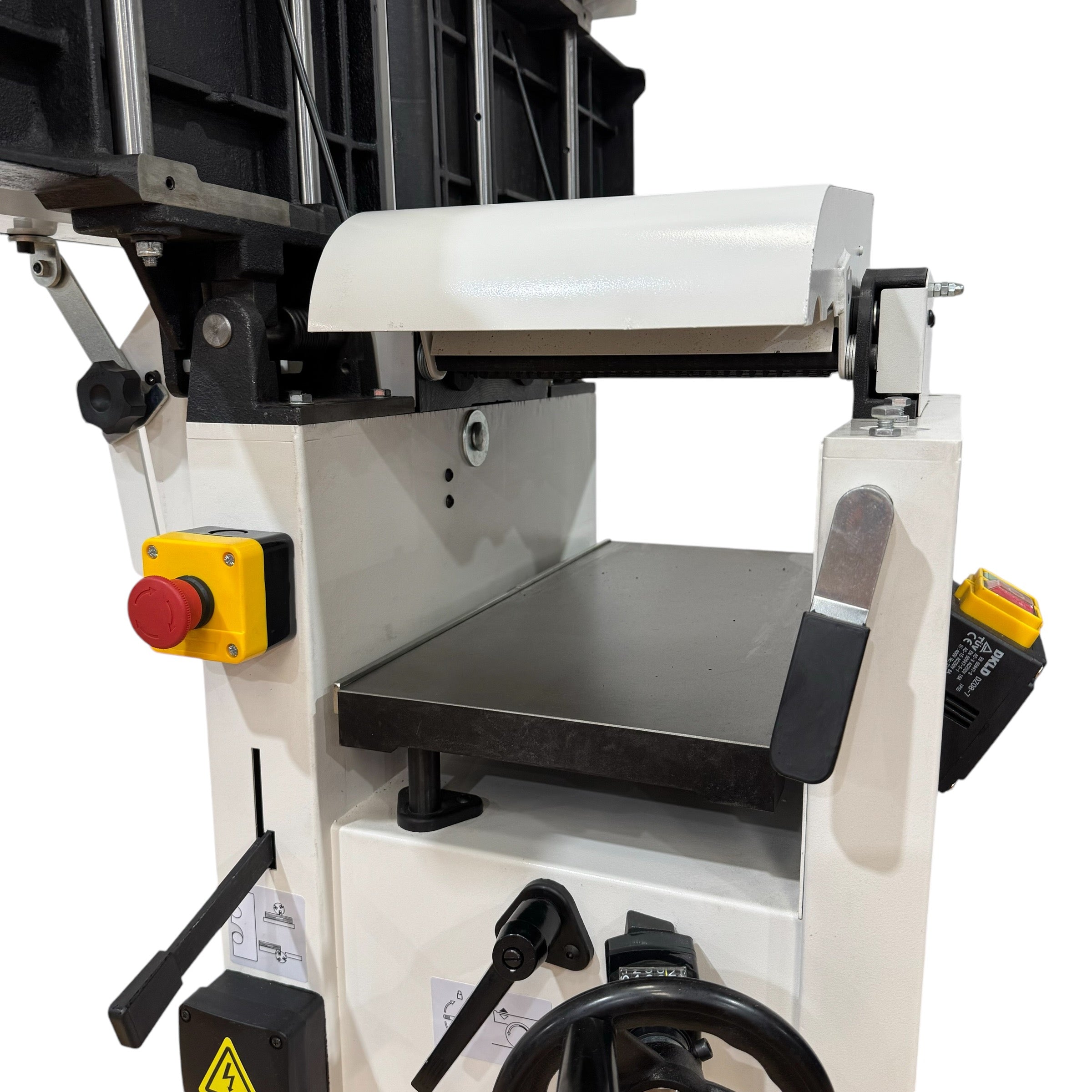

Thicknesser: 258mm width, 225mm max depth.
-

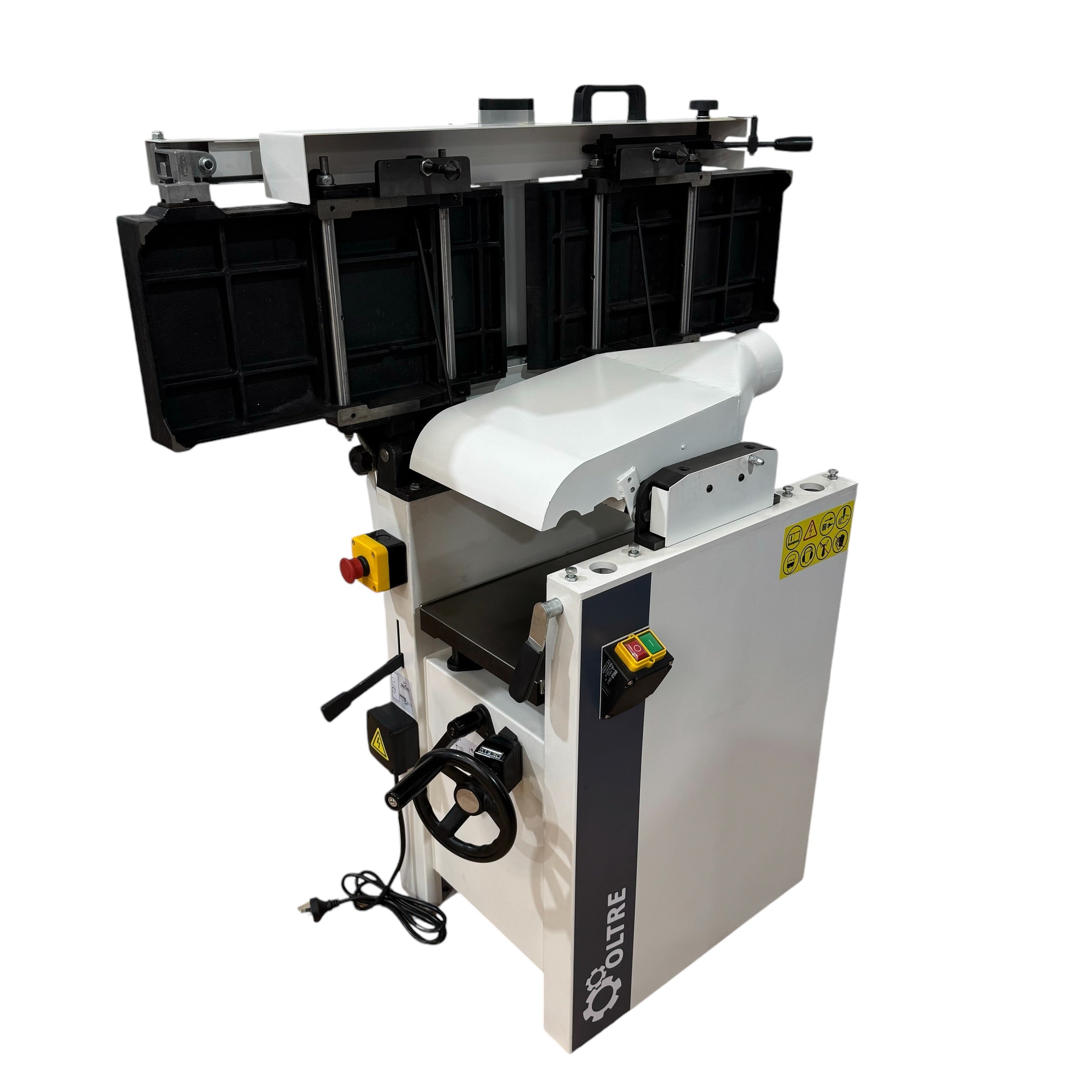

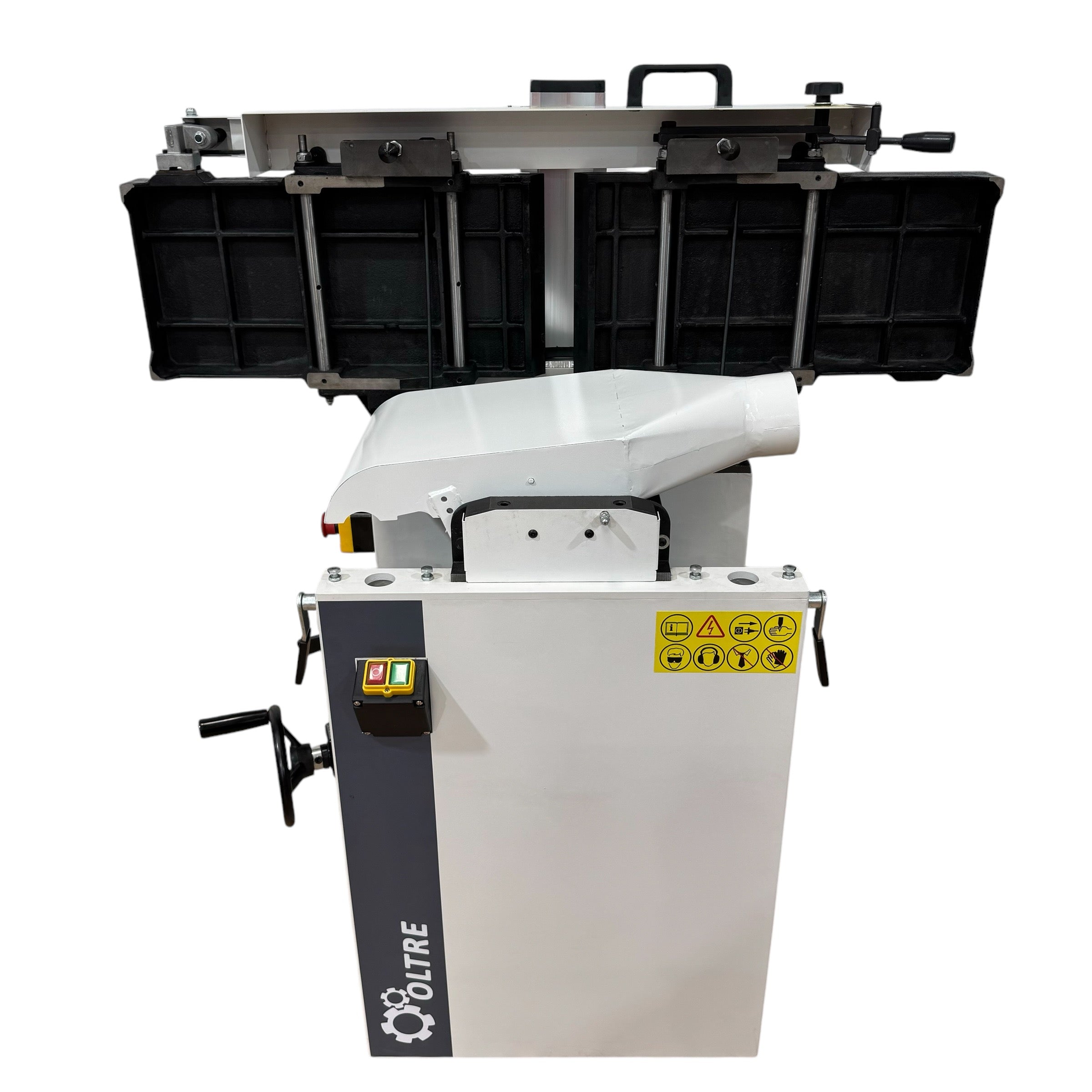

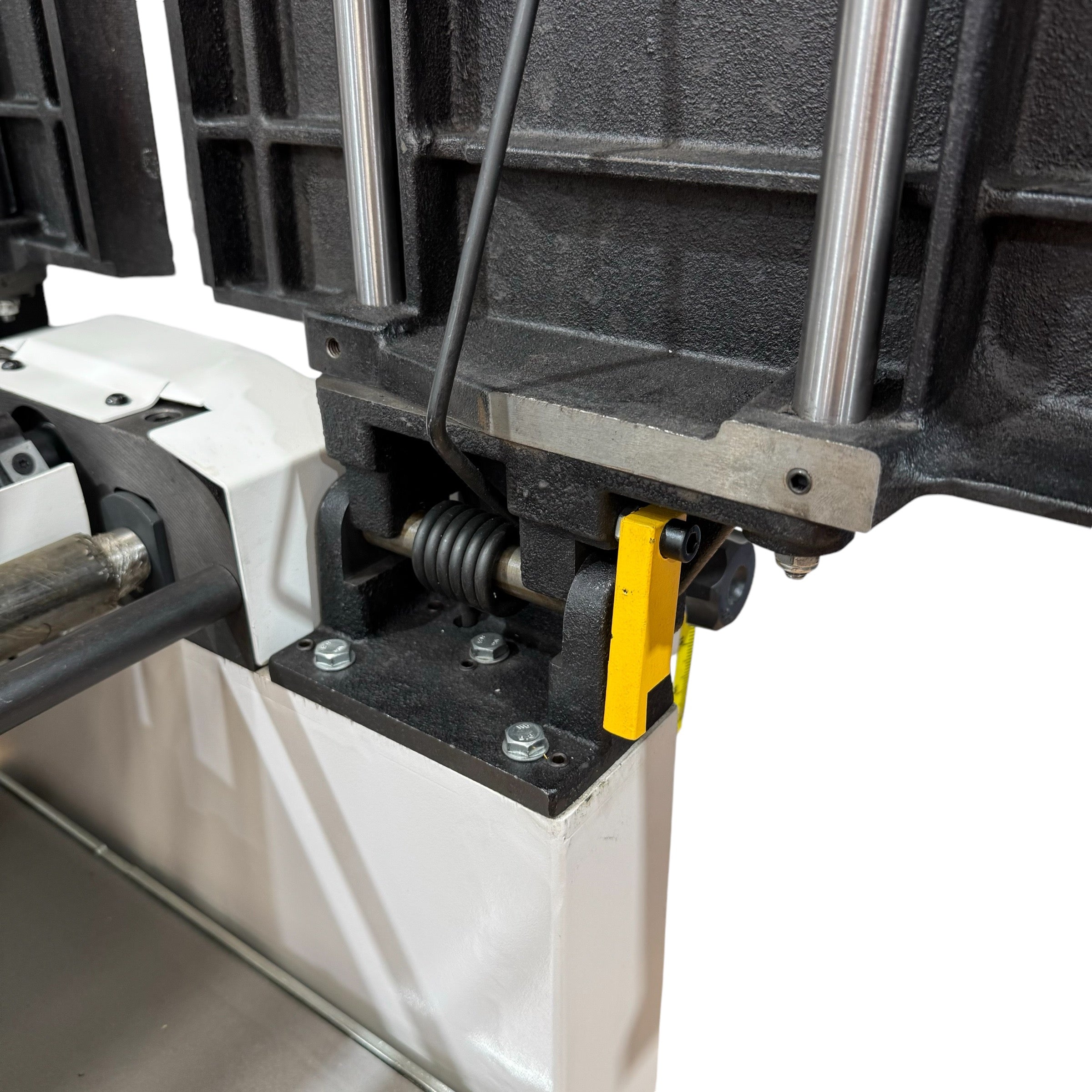

Quick & Easy Conversion – Lift the tables in one piece for a 10-second switch between jointer and thicknesser modes.
-

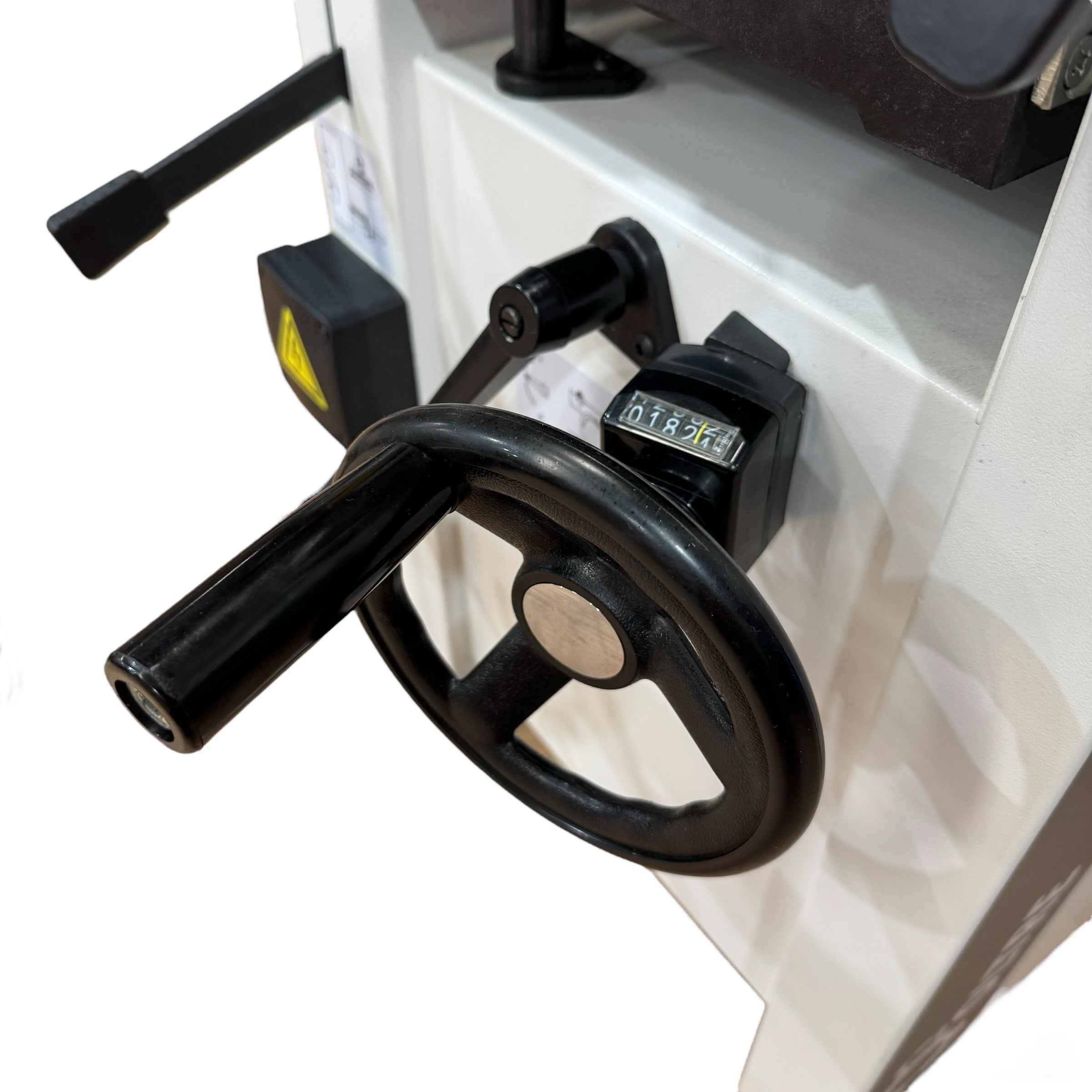

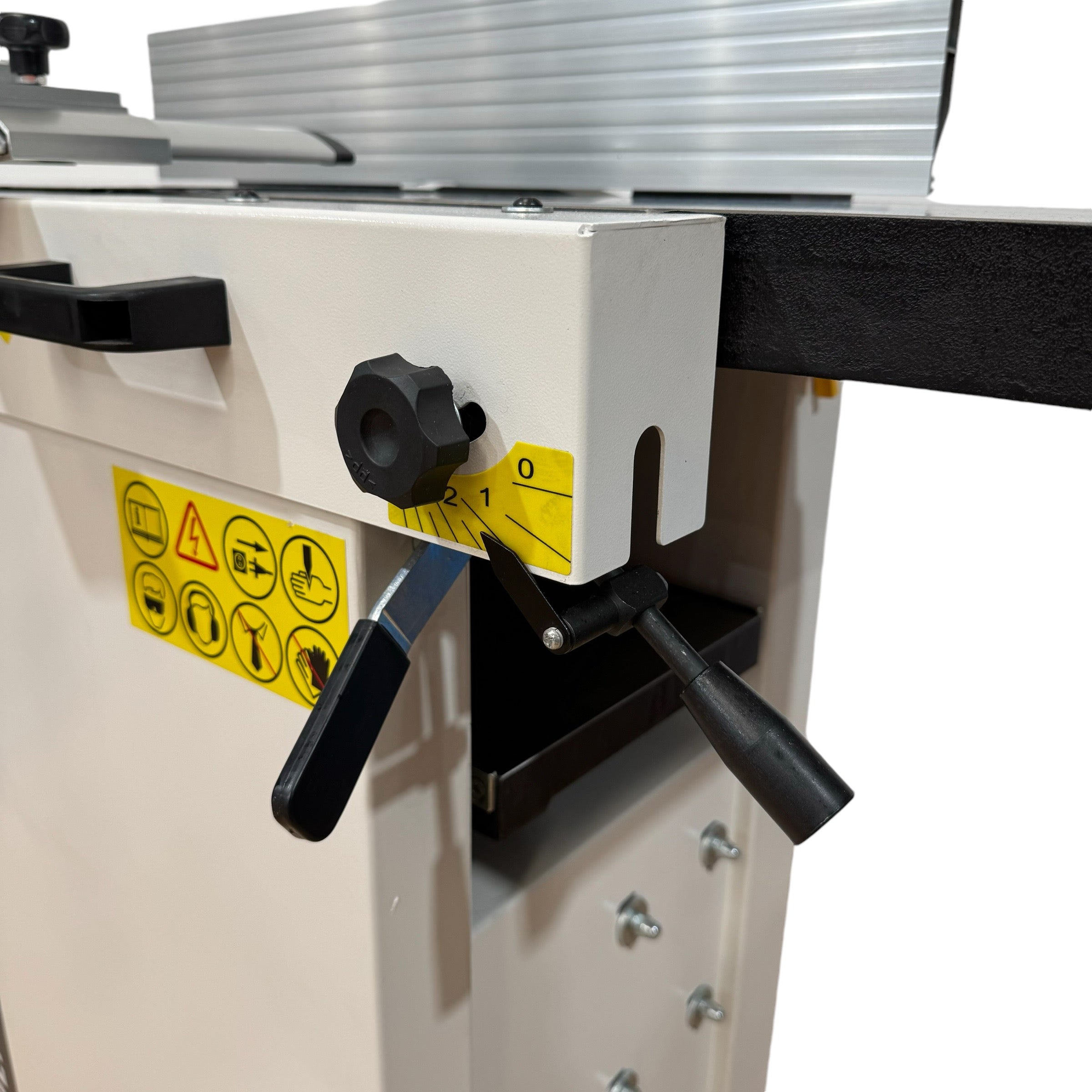

Precise Depth Control – Analogue-style depth gauge for clear, accurate height adjustments.
- Smooth & Efficient Feed – 5.5m/min roller feed for a clean, consistent finish.
Engineered for reliability and ease of use, the Oltre Jointer Thicknesser is an ideal choice for serious hobbyists and small workshops looking for a premium yet affordable machine.
Additional Information
Model
Type
Combination Planer & Thicknesser
SKU
9501211
Part Number
OT-PT1001A
Barcode
735745533406
Brand
Oltre
Size
250mm (10")

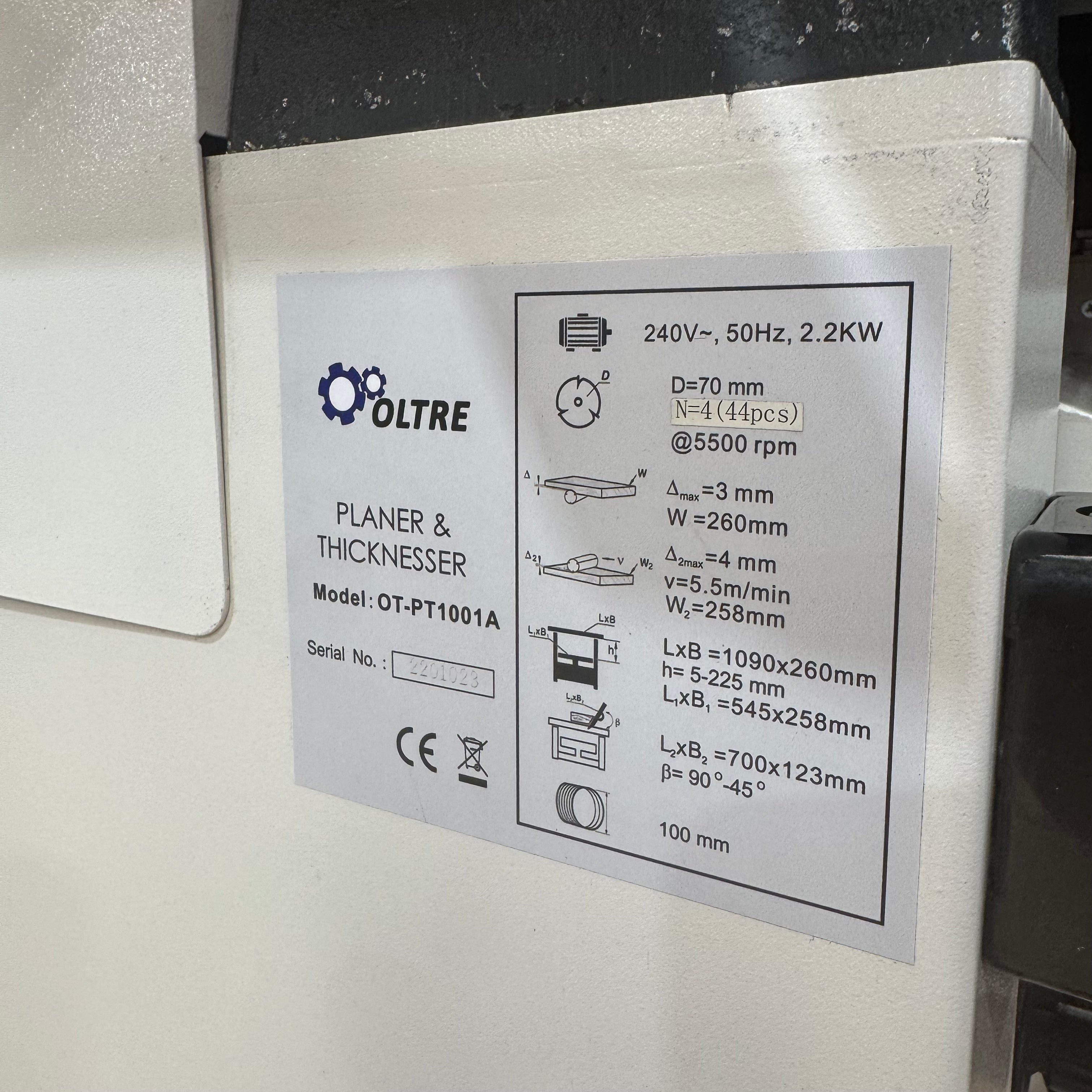

Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
3HP (2.2KW)
Cutting Capacity - Depth
3
Cutting Capacity - Height
225mm
Cutting Capacity - Width
260mm
Feed Speed
5.5m / Min.
Technical - Spiral Head Cutter Block
Blade- Cutter Head Block - Blade Size
15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter
100mm
Blade - Cutter Head Block - Rows
7
Blade - Cutter Head Block Speed (RPM)
4000
Blade - Cutter Head Block - No. of Blades / Tips
44
Dimensions
Product Weight (Net Weight)
170kg
Country of Origin
Manufactured in
China
Workshop (Site) Info
Electrical Connection

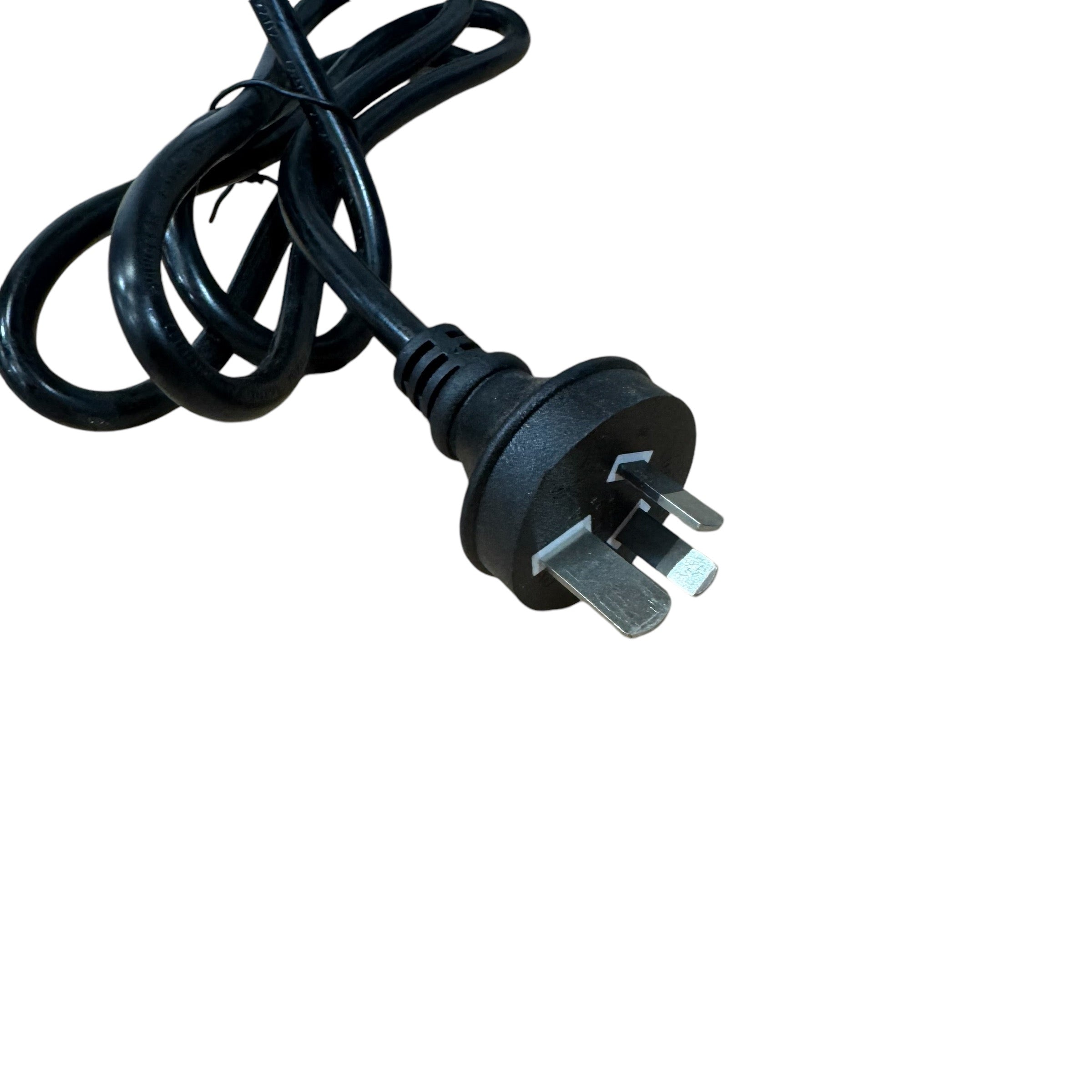

15Amp Plug

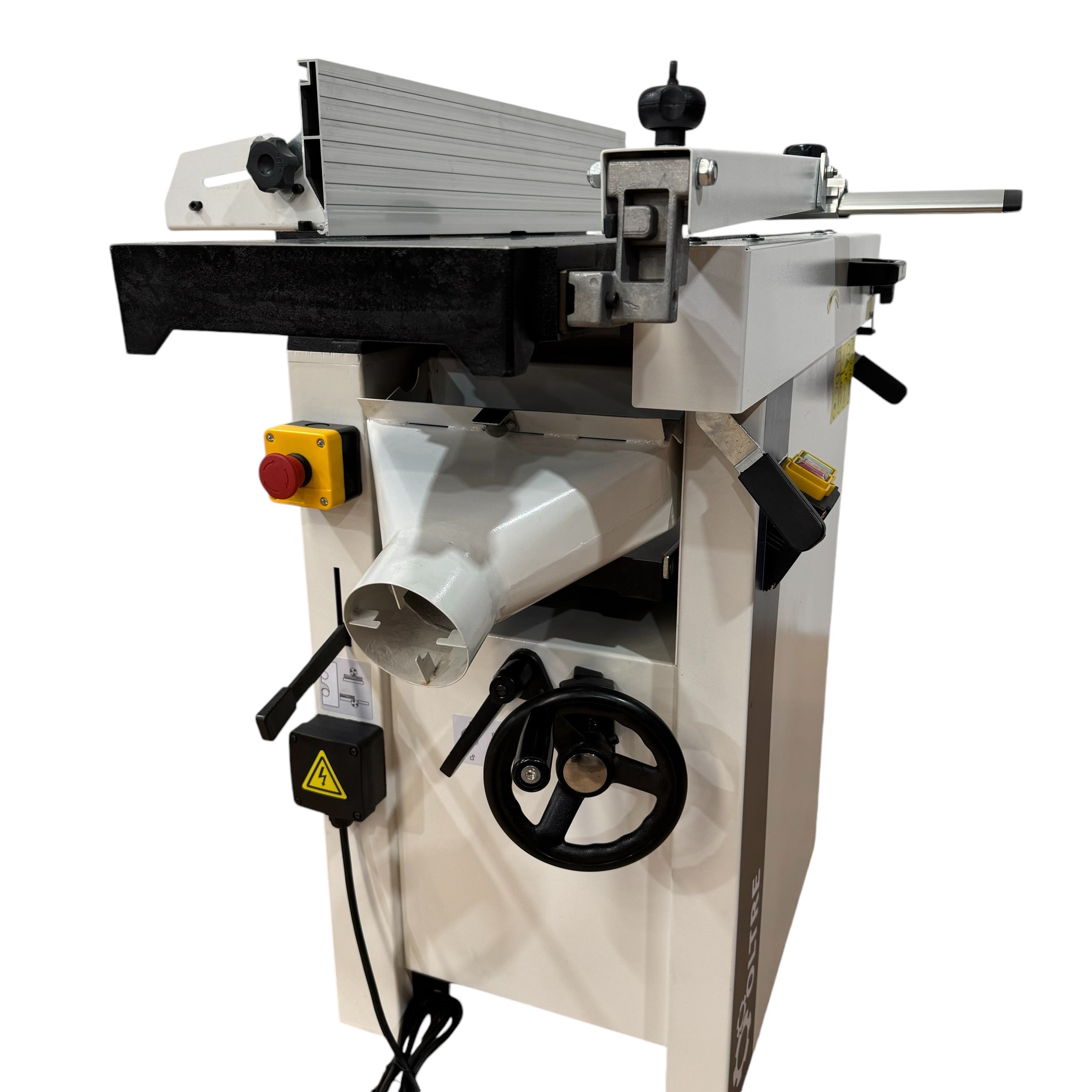

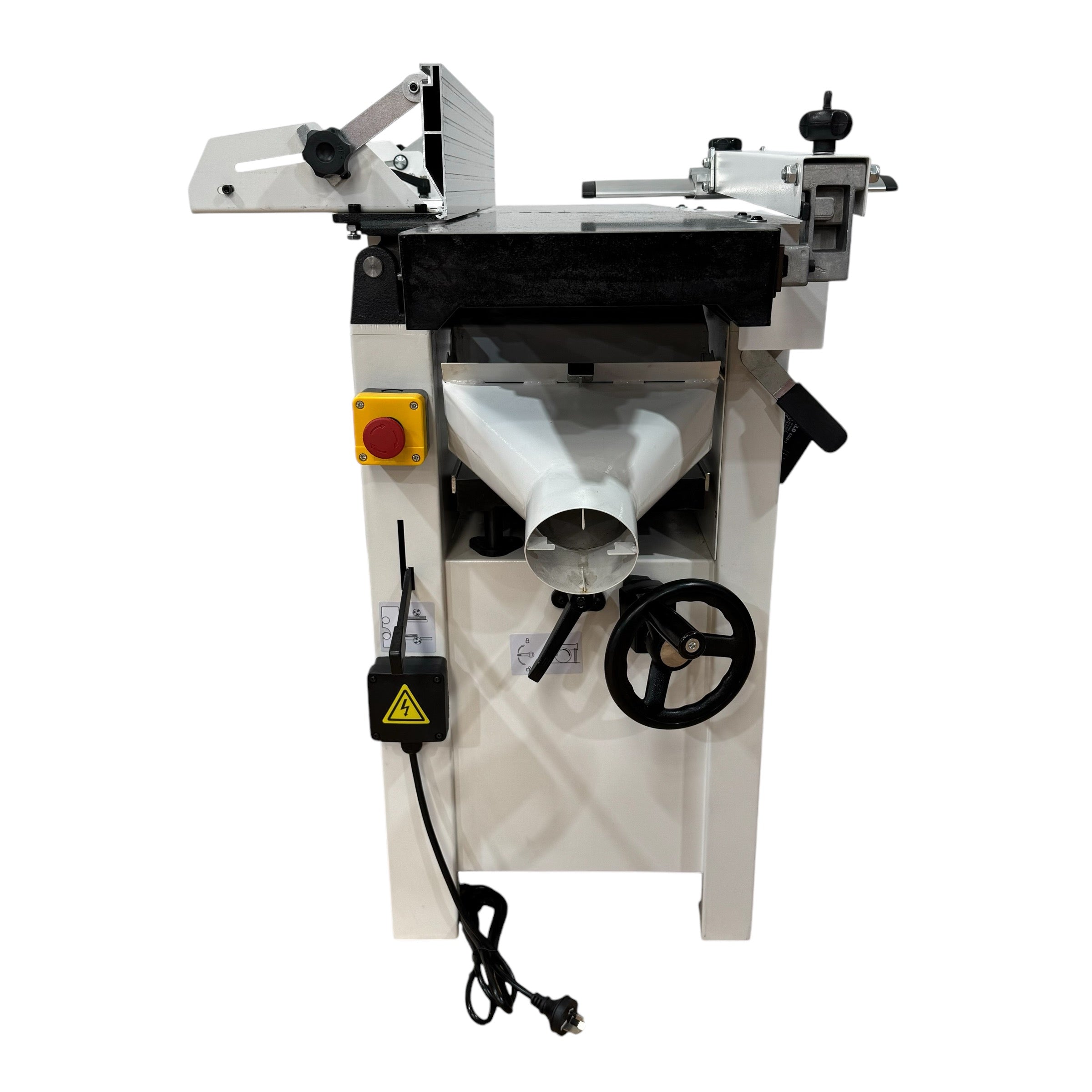

Dust Hose Inlet Diameter
100mm
Spare Parts / Consumables
Spare Parts / Consumables
Warranty
Warranty
Warranty
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
1 Year
Packaging + Shipping
Shipping Length
1150mm
Shipping Width
530mm
Shipping Height
920mm
Shipping Weight (Gross)
195kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Packaging Box Qty
1
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product is classified as 'Heavy / Oversized' and generally does not qualify for FREE SHIPPING.
