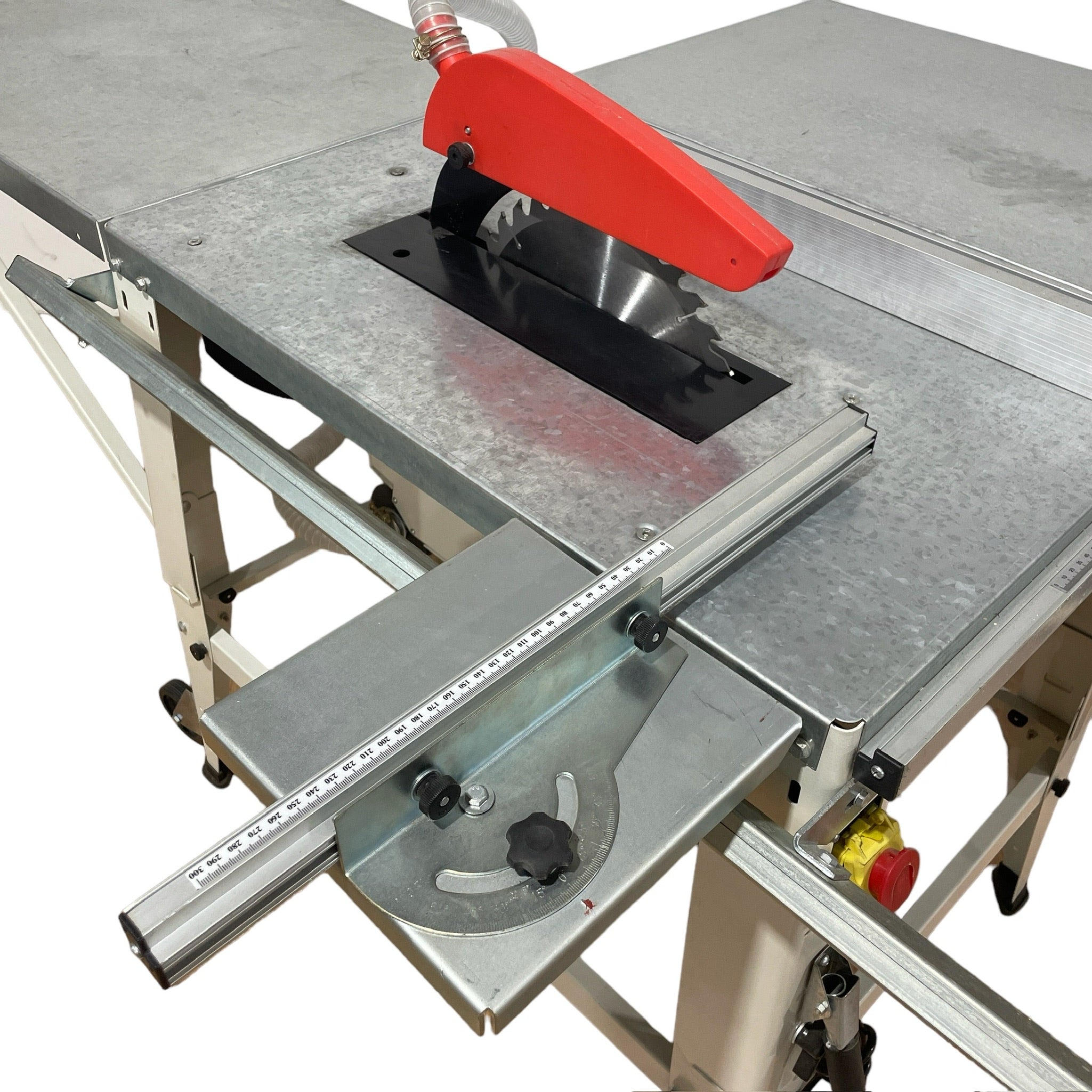

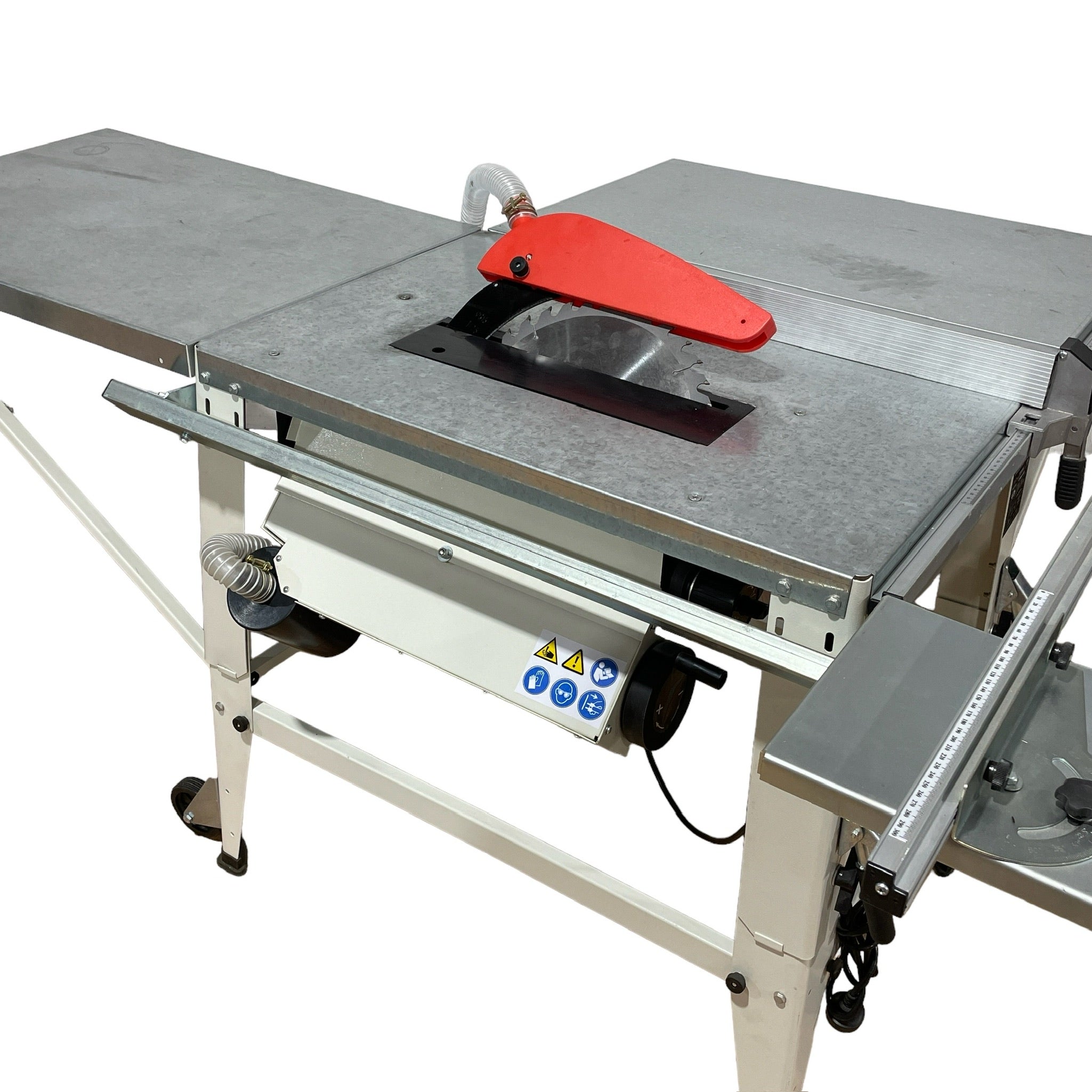

Oltre 315mm (12″) Table Saw 3HP 240V – CSB315E Contractor Saw
The Oltre 315mm (12″) Table Saw CSB315E is a powerful and versatile contractor-style table saw designed for woodworking workshops, job sites, and DIY users.
Powered by a 3HP (2.2kW) 240V motor, this machine delivers the cutting performance needed for ripping hardwood, sheet materials, and construction timber with ease. The large 315 mm blade capacity allows deeper cuts than typical 10″ saws, making it ideal for cabinetry, furniture making, and site work.
Built with portability and practicality in mind, the CSB315E features foldable legs and extension tables, allowing the saw to be quickly set up in the workshop or transported to the job site. The rack-and-pinion adjustment system ensures blade height and tilt settings for accurate cutting results.
Whether you're upgrading from a smaller jobsite saw or looking for a high-capacity 12″ contractor table saw, the Oltre CSB315E offers excellent performance and value for Australian woodworkers.
Features
-
Large 315mm (12″) Blade Capacity
- Allows deeper cutting compared with standard 10″ table saws.
-
Powerful 3HP (2.2kW) Motor
- Provides reliable performance for ripping hardwoods, boards, and sheet materials.
-
Rack & Pinion Blade Adjustment
- Blade height and tilt adjustment for improved cutting accuracy.
- Extension Tables – Right & Rear
- Extra support when cutting larger panels or longer workpieces.

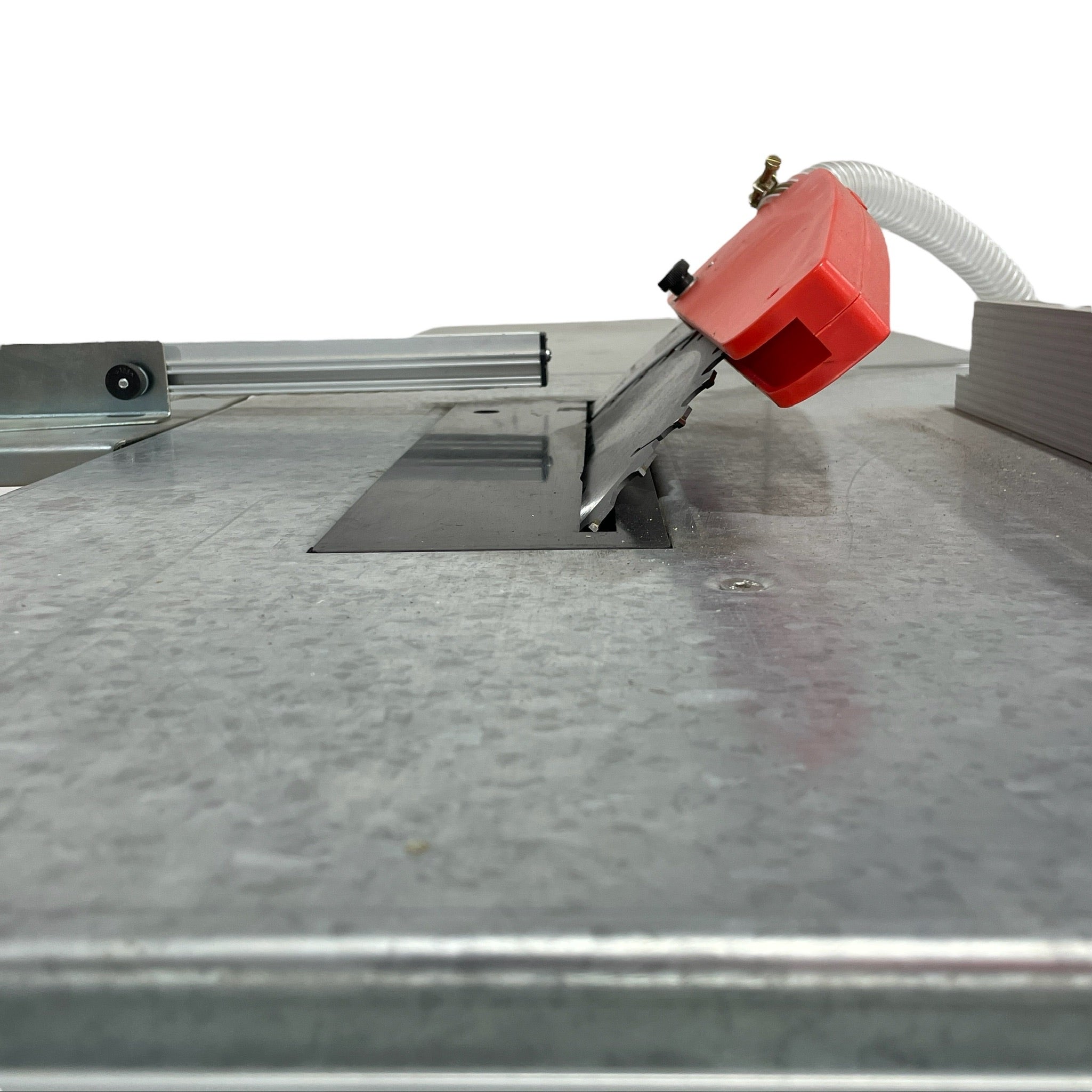

- Blade Tilt 0°–45°
- Ideal for bevel cuts, joinery, and angled woodworking applications.

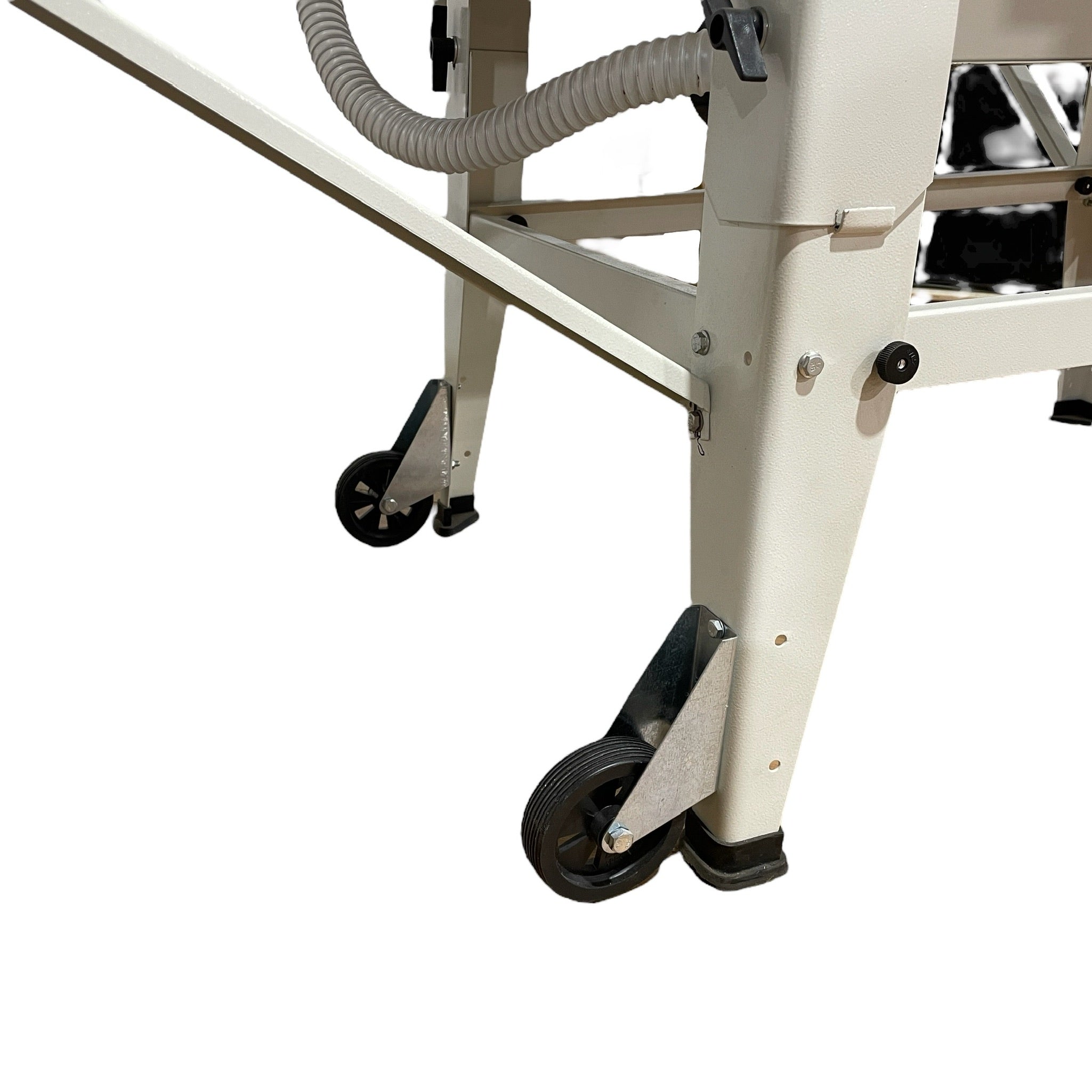

- Portable Contractor Design
- Foldable legs allow easy transport and setup in workshops or on job sites.
- Standard 240V Power
- Runs from a normal 10A outlet – perfect for home workshops and trade use.
Ideal Applications
The Oltre CSB315E is perfect for:
-
Home workshops
-
Builders & carpenters
-
Renovation work
-
Cutting timber boards and sheet materials
Additional Information

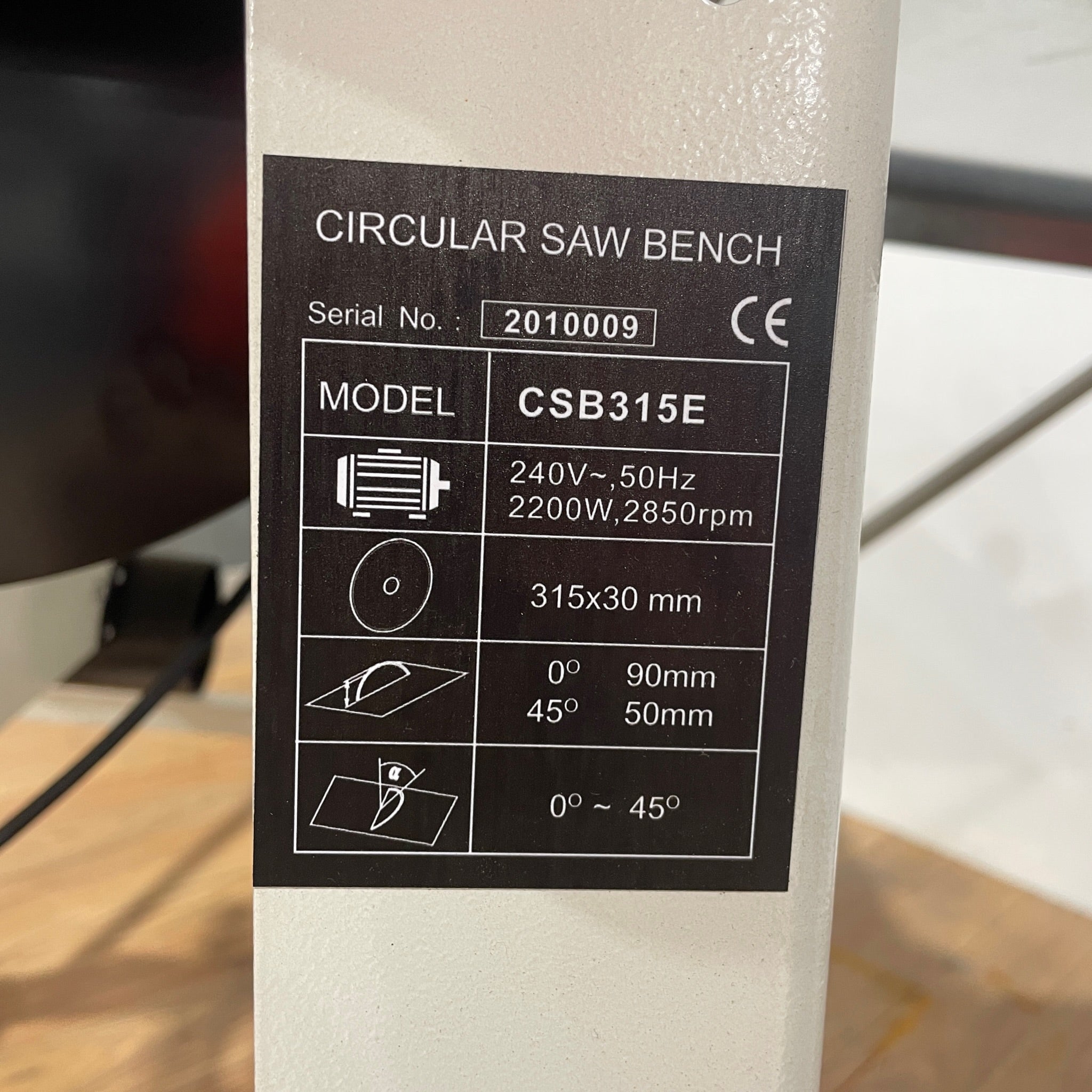

Model
Type
Table Saw
SKU
8001359
Part Number
CSB315
Brand
Oltre
Size
315mm (12”)
Technical - Main
Motor Power (Output)
Motor Power (Output)
Output power means the maximum power that the motor puts out under ideal conditions.
3HP (2.2kW)
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Electrical Connection
Electrical Connection
Please note by default all our products are rated 230V-240V or 415V to suit the Australian Market
10Amp Plug & Lead
Cutting Capacity - Height
100mm
Technical - Saw
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
315mm
Blade (Main) - Speed
2800RPM
Blade Tilt
0° to 45°
Dimensions
Product Weight (Net Weight)
63kg
Country of Origin
Manufactured in
China
Designed, Researched & Developed in
Australia
Warranty
Warranty (Australia)
Warranty (Australia)
All of our products come with full manufacturer's warranty. If you need to make a claim - all you need is the tax invoice from your purchase. If you lose your original tax invoice and need to make a claim, please let us know and we'll re-issue it to you.
2 Years (Home User) or 1 Year (Commercial User)
Warranty (Important for International Customers)
Warranty (Important for International Customers)
Important Warranty Notice for International CustomersPlease note that purchases made from outside Australia are undertaken at the customer’s own risk. Our product warranties are generally valid within Australia only. While we are happy to assist with warranty-related issues, the following conditions apply for international orders:Any warranty claim requires the item to be returned to us in Australia at the customer’s expense.If the claim is accepted, Beyond Tools will carry out the repair or replacement under the terms of the Australian warranty.Return shipping of the repaired or replacement item must also be paid by the customer.We do not cover international freight, import duties, or customs clearance costs.We strongly recommend that international customers consider this before purchasing. If you have any questions, please feel free to contact us before placing your order.
See Notes
Packaging + Shipping
Shipping Length
128cm
Shipping Width
66cm
Shipping Height
61cm
Shipping Weight (Gross)
83kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Cardboard Box
Packaging Box Qty
2
Carton 1 (L X W X H x KG)
94cm x 66cm x 47cm x 57Kg
Carton 2 (L X W X H x KG)
128cm x 24cm x 14cm x 6Kg
Requires a Skid to Ship
Requires a Skid to Ship
Items over 32kg must be packed on a pallet or crate so they can easily be moved by forklift.
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
Shipping Notes
It is highly recommended that goods over 25Kg are handled with a forklift / tail lift. For items over 32kgs, you must ensure there is assistance for loading and unloading unless you have selected the Tail lift options, otherwise there will be additional fees.This is for safe handling for the product and the handler.Please ADD a Tail Lift to your order - should you wish to include a Tail Lift.Goods over 50Kg must be handled by a Forklift / Tail Lift.
This product requires a skid / pallet / crate in order to safely transport via road (a custom price will be provided after your order is placed)
