Type

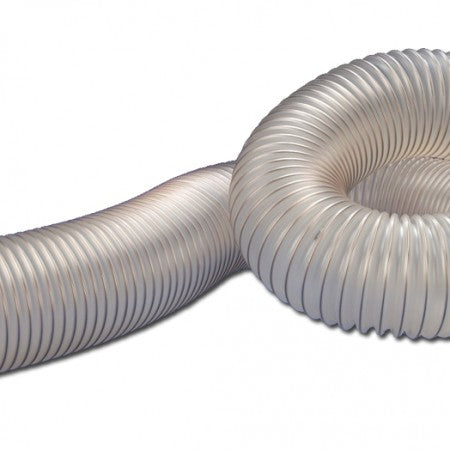

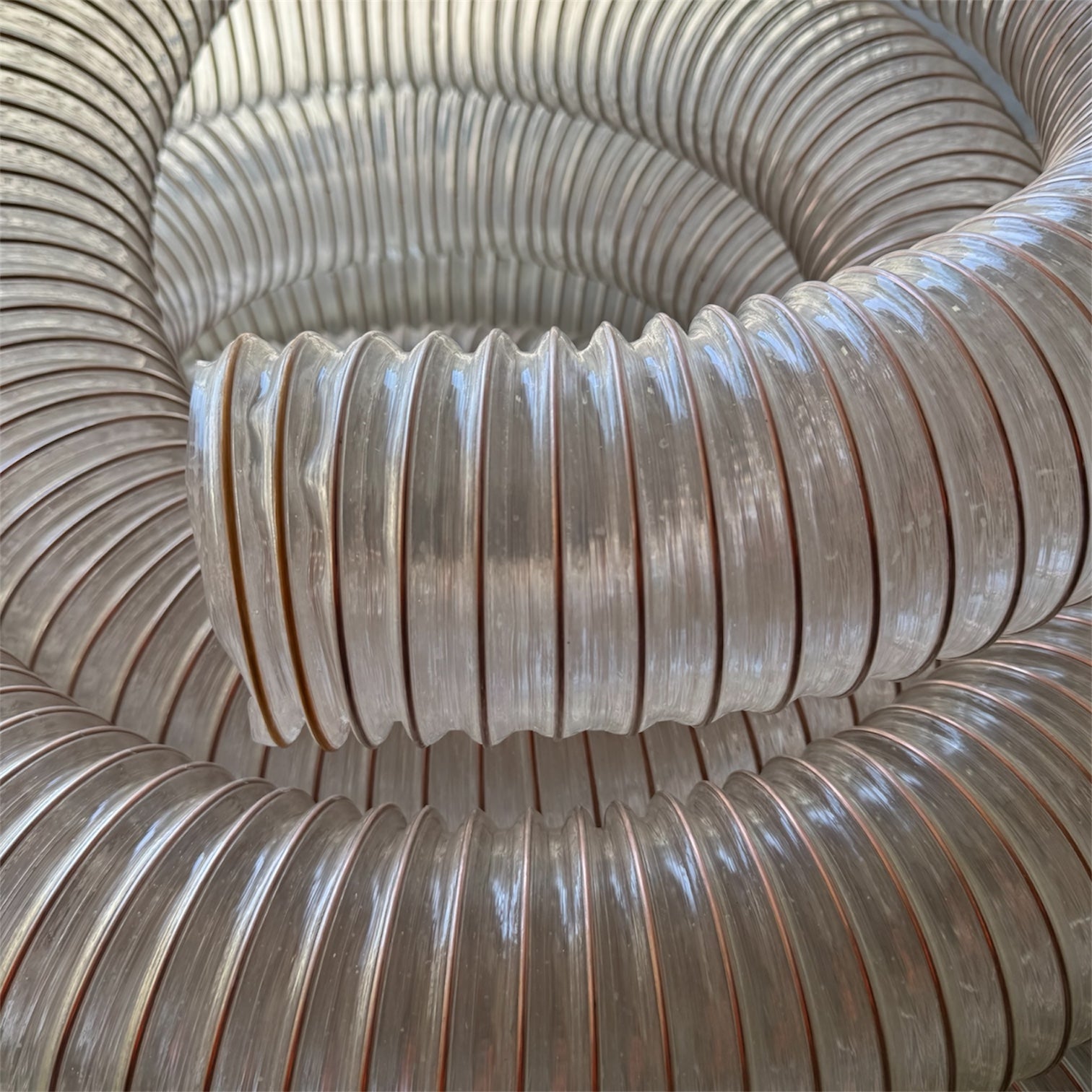

Dust Collector Hose
SKU
8000352-5
Part Number
1-2-067-000
Barcode
735745532614
Brand
Oltre
Available in various diameters. Sold per 5m increments off a continuous 10m Roll.
Applications
ID | OD | Overpressure | Vacuum | Bending Radius | Weight |
mm | mm | bar | bar | mm | kg/m |
25 | 32 | 1.300 | 0.340 | 32 | 0.14 |
32 | 39 | 1.100 | 0.320 | 39 | 0.17 |
38 | 46 | 0.900 | 0.300 | 46 | 0.19 |
50 | 58 | 0.700 | 0.240 | 58 | 0.27 |
60 | 68 | 0.560 | 0.210 | 68 | 0.31 |
63 | 71 | 0.550 | 0.180 | 71 | 0.34 |
76 | 84 | 0.470 | 0.130 | 84 | 0.44 |
80 | 88 | 0.430 | 0.120 | 88 | 0.47 |
90 | 98 | 0.390 | 0.100 | 98 | 0.49 |
100 | 108 | 0.350 | 0.080 | 108 | 0.52 |
114 | 122 | 0.300 | 0.070 | 122 | 0.59 |
120 | 128 | 0.290 | 0.070 | 128 | 0.62 |
125 | 133 | 0.280 | 0.060 | 133 | 0.64 |
140 | 148 | 0.250 | 0.050 | 148 | 0.72 |
150 | 158 | 0.170 | 0.050 | 158 | 0.76 |
160 | 168 | 0.160 | 0.040 | 168 | 0.81 |
178 | 186 | 0.140 | 0.040 | 186 | 0.89 |
180 | 188 | 0.140 | 0.040 | 188 | 0.90 |
200 | 208 | 0.130 | 0.030 | 208 | 1.10 |
203 | 211 | 0.130 | 0.030 | 211 | 1.10 |
254 | 262 | 0.100 | 0.015 | 262 | 1.30 |
305 | 313 | 0.090 | 0.015 | 313 | 1.70 |
