Type
Combination Machine
SKU
8001754
Part Number
CM254/252/6 + MA46 240V
Brand
Oltre
Status
Available
Description

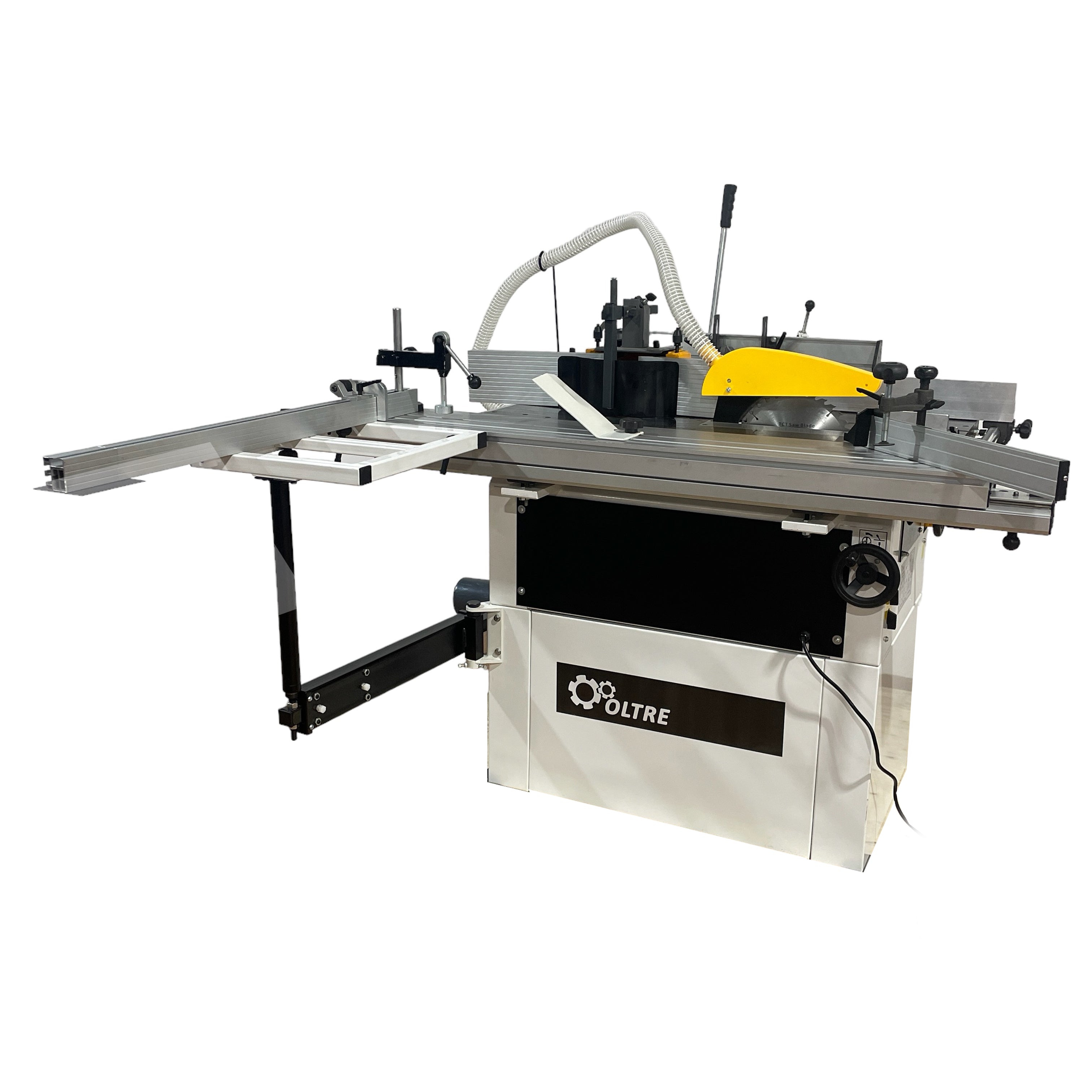

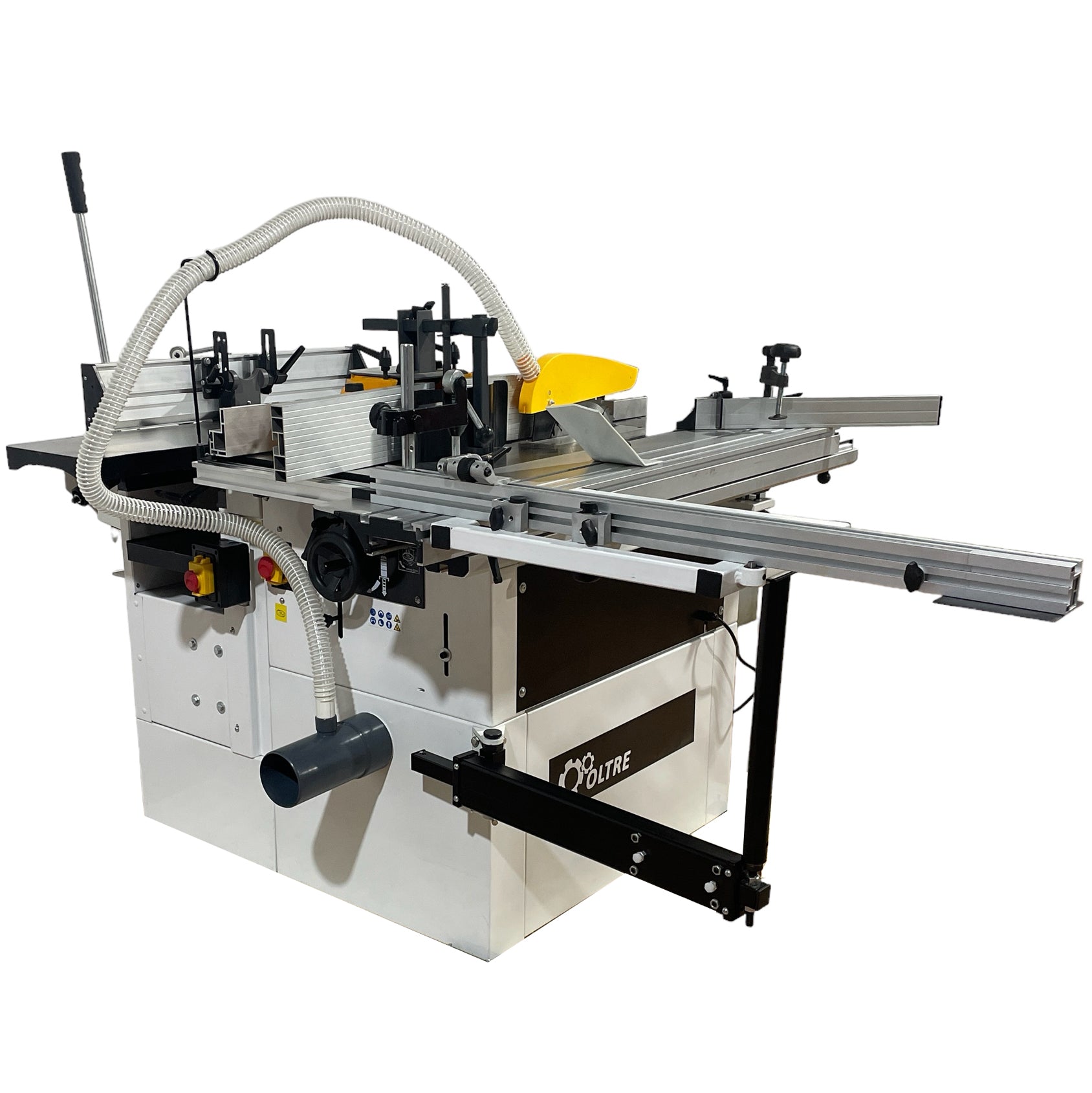

Combination Machine by Oltre equipped with features to make any job more efficient, the Combination Machine by Oltre is an economical machine designed to work on the toughest materials.
Features
- 5 Functions

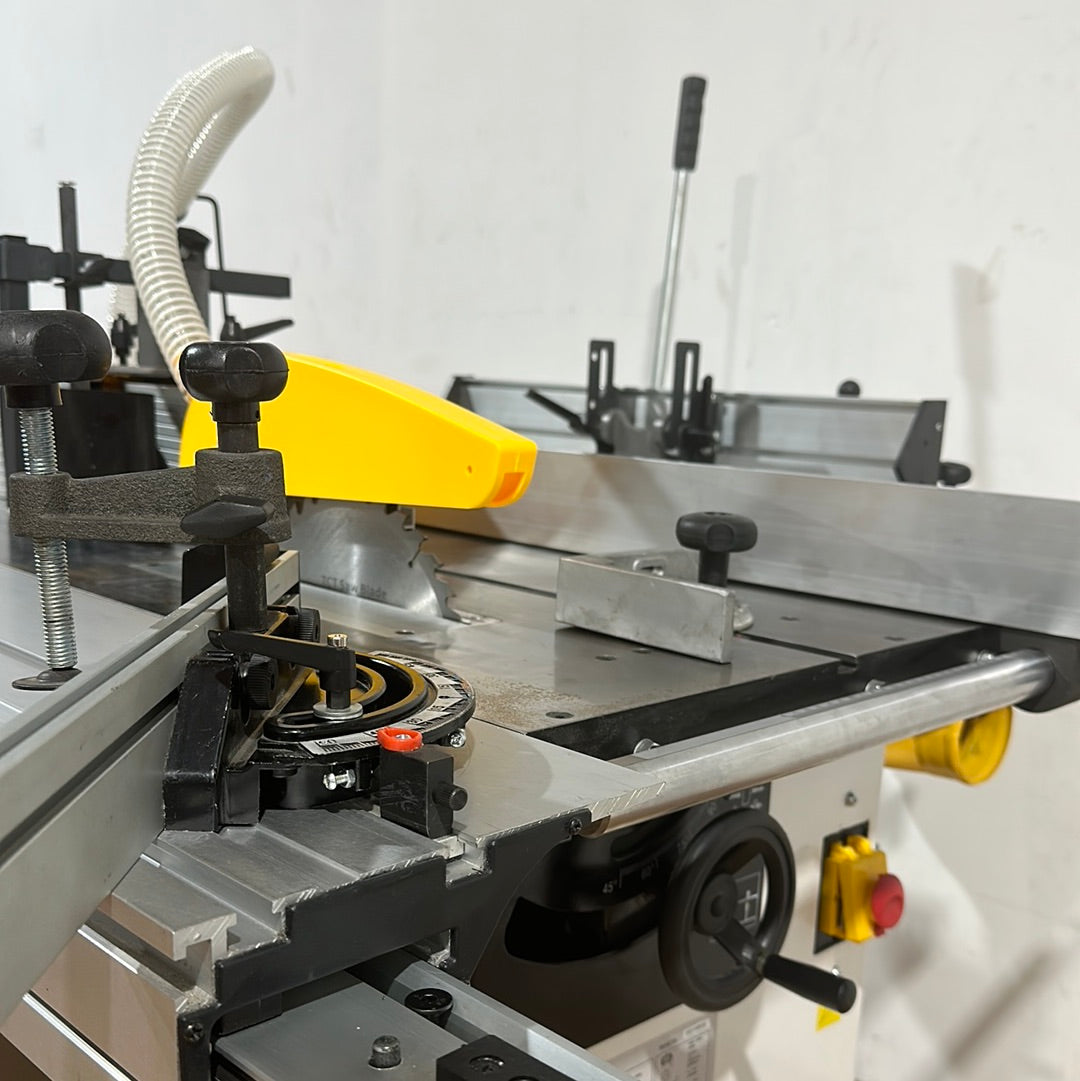

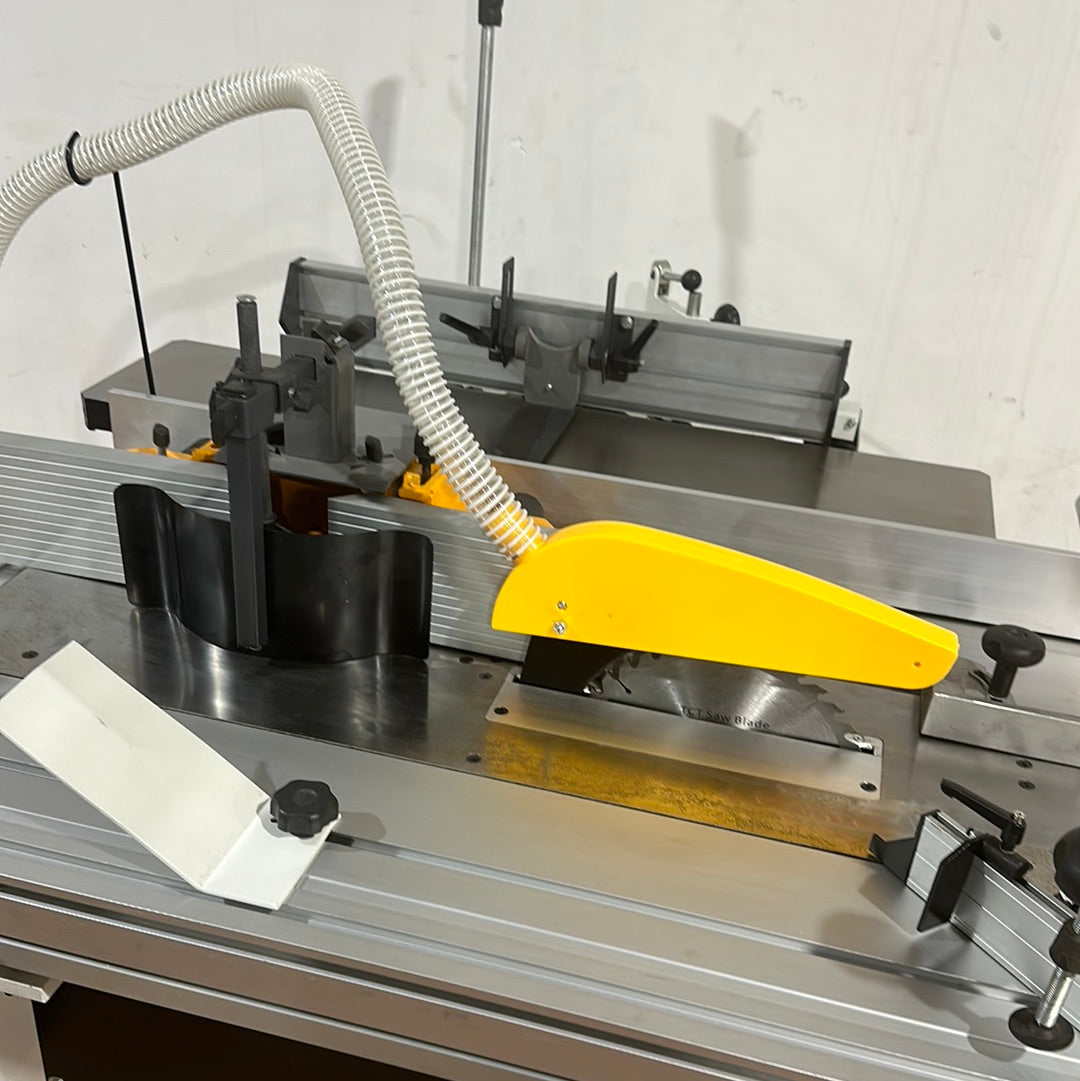

- 250mm (10") Sliding Table Saw

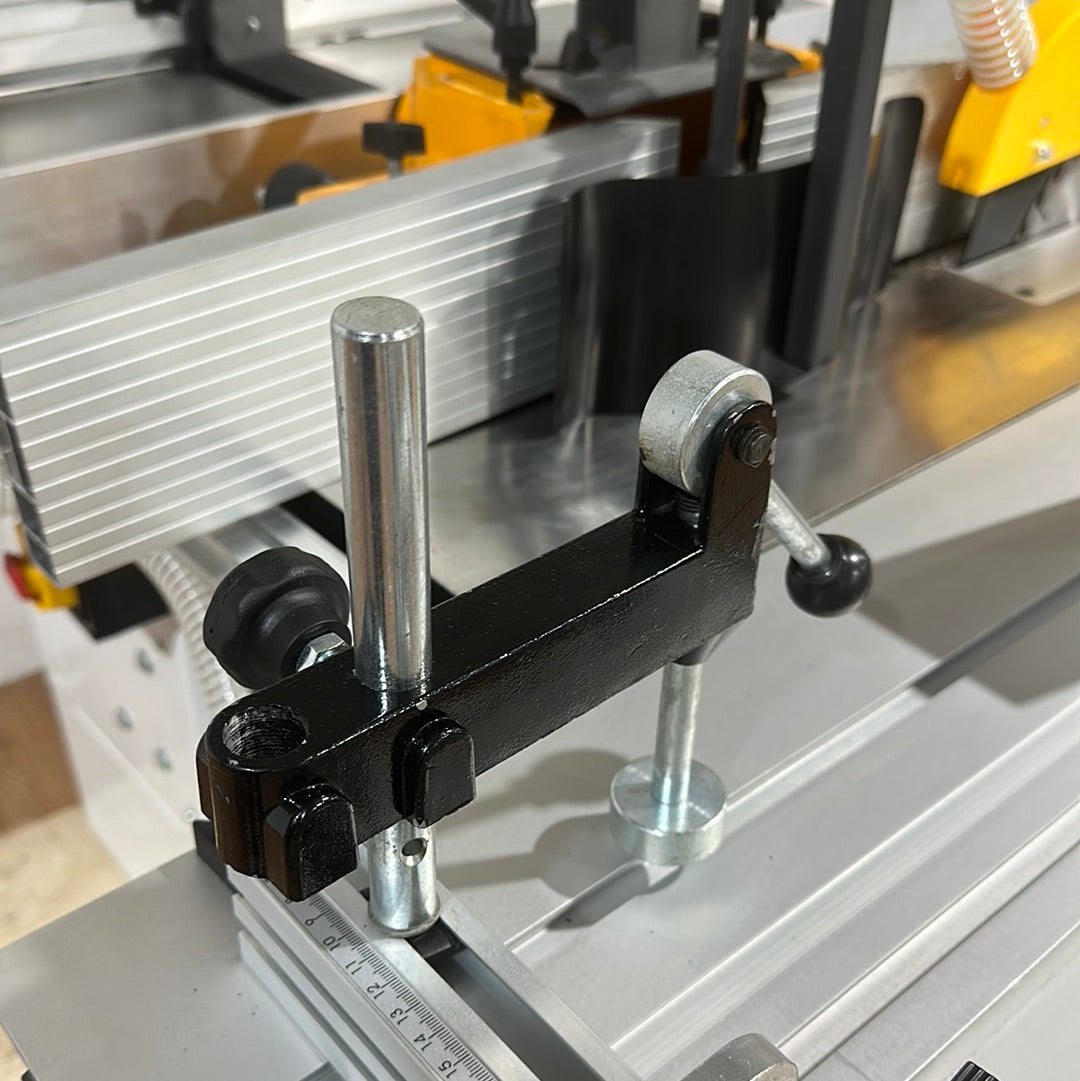

- 30mm Bore Spindle Moulder with 3 x Speeds (4500RPM / 6500 RPM / 8500RPM)
- Thicknesser

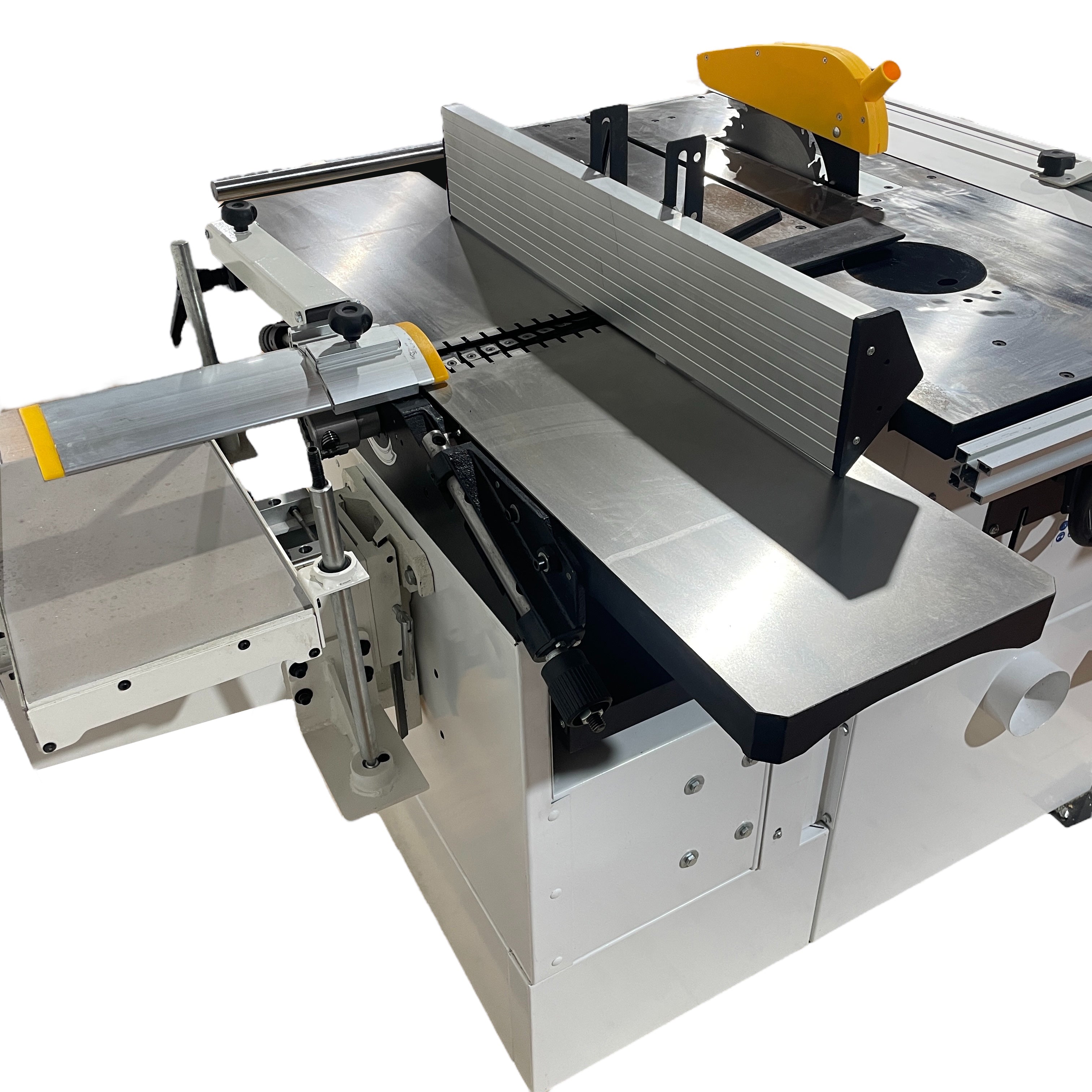

- Planer
- Mortiser
- Heavy Duty
- 3 x 1500W Motors
Additional Information
Model
Technical - Main
Power Source
Power Source
Any source of power which provides the energy required to drive a piece of machinery or equipment and includes, but is not limited to: electrical, steam, hydraulic, water, air, mechanical, radiation, and thermal forms of energy.
240V 50Hz Single Phase
Motor Power (Input)
Motor Power (Input)
Input power means the full-load power input required to operate the motor.
2HP / 1500W
Technical - Saw
Sliding Table (Cross Cut) Size
1300mm x 210mm
Rip Capacity
Rip Capacity
Rip capacity refers to the distance between a table saw's blade and its fully extended rip fence.
500 mm
Blade (Main) - Bore Size (mm)
30mm
Blade (Main) - Diameter (Max.)
254 mm

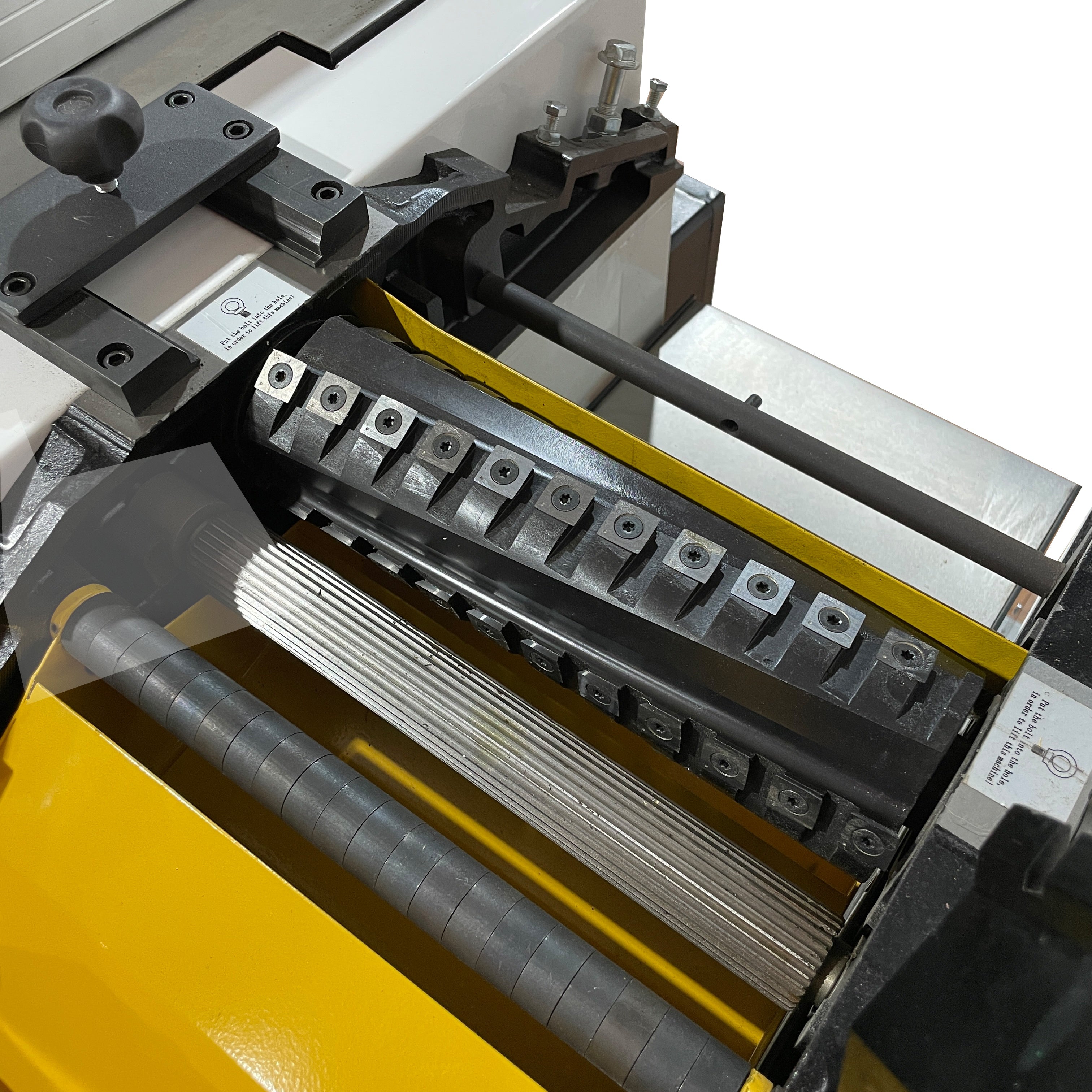

Technical - Spiral Head Cutter Block
Blade - Cutter Head Block - Rows
4
Blade - Cutter Head Block - No. of Blades / Tips
44
Country of Origin
Manufactured in
China
Features
Induction Motor
Mitre Gauge Included
Mitre Gauge Included
A mitre gauge is a device used for holding workpieces at a set angle while being cut on table saws, bandsaws or sanded on stationary disc sanders. The mitre gauge slides in a slot on the worktable (known as a mitre slot) on the machine being used.
Push Stick Included
Standard Inclusions
5 x Replacement Spiral Head Cutter Block Blades
Push Stick
Push Stick
Safety
Emergency Stop Switch
Emergency Stop Switch
An emergency stop switch is a safety mechanism used to shut off machinery in an emergency, when it cannot be shut down in the usual manner.
Blade Guard
CE Certified
Dust Port
3 x 100mm
Workshop (Site) Info
Electrical Connection
15Amp Plug & Lead
Power Supply Cord
2.5 m
Other Requirements
Dust Collector
Packaging + Shipping
Shipping Length
1260 mm
Shipping Width
1150 mm
Shipping Height
1100 mm
Shipping Weight (Gross)
100.48 kg
Packaging
Packaging
Items over 25kg must be packed on a pallet or crate so they can easily be moved by forklift.
Wooden Box / Crate with Skid
Packaging Box Qty
2
Carton 1 (L X W X H x KG)
450mm x 450mm x 450mm
Requires a Forklift / Tail Lift to Unload
Requires a Forklift / Tail Lift to Unload
If you are ordering an item over 32kg - it will require a forklift or loading dock at the shipping destination. If you do not have these facilities at the shipping destination you will require a tail lift delivery. Please select this optional ADD-ON. Alternatively - you can collect from the depot.
Shipping Notes
This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
Optional Accessories

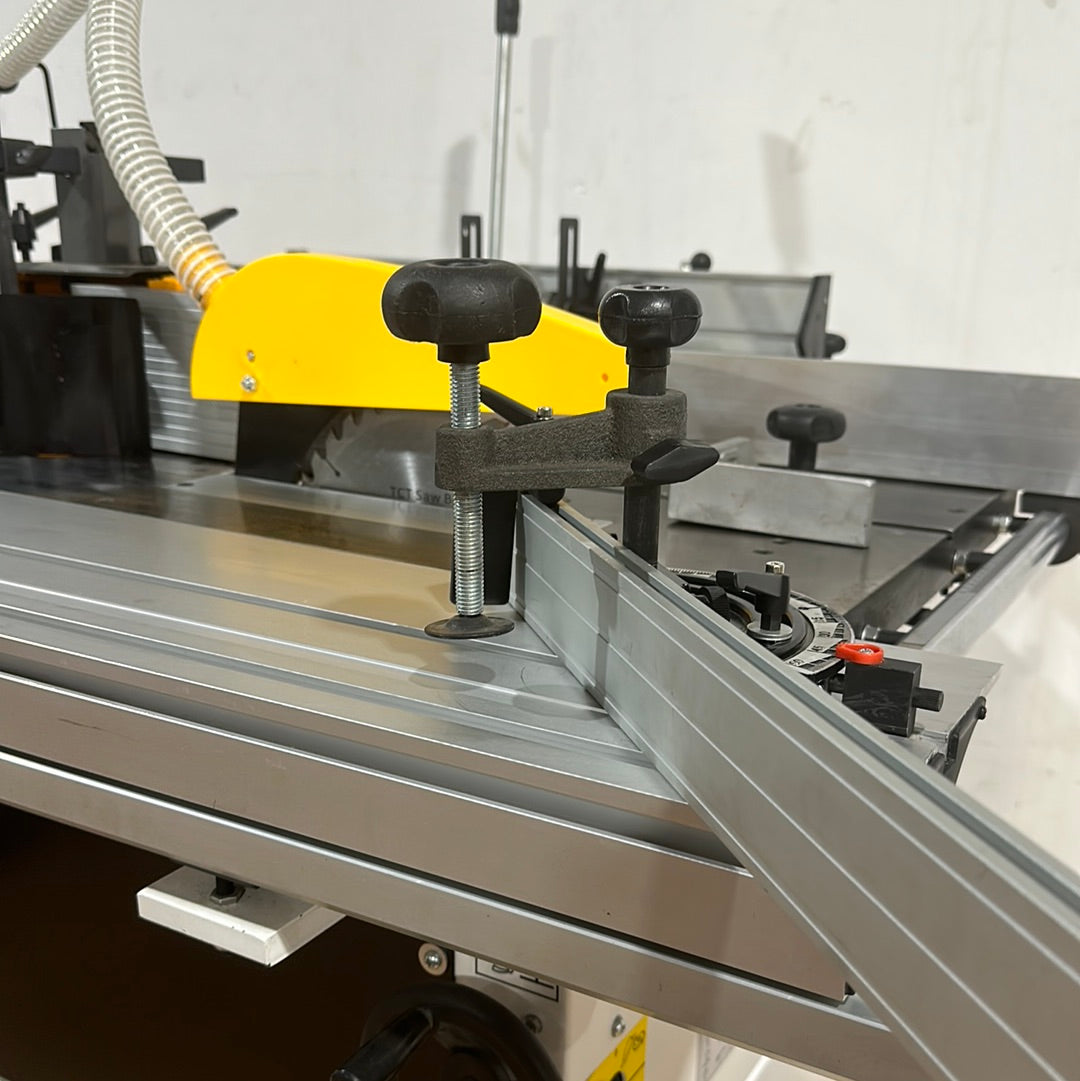

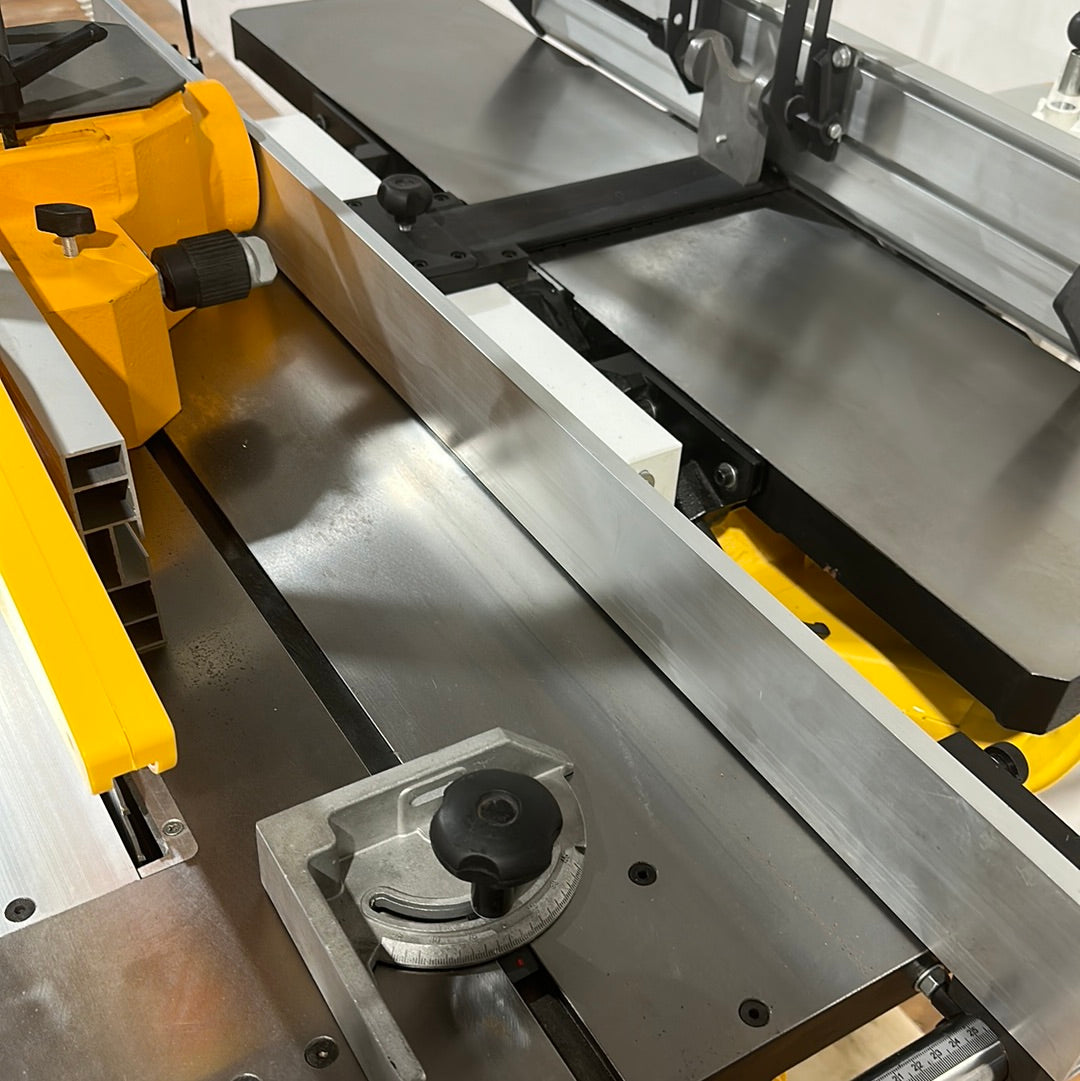

Combination Machine CM254/250/6 by Oltre
